Logical node prefixes
The IEC 61850 logical node name prefix settings are used to create name prefixes to
uniquely identify each logical node. For example, the logical node “PTOC1” can have the
name prefix “abc”. The full logical node name is then “abcMMXU1”. Valid characters for the
logical node name prefixes are upper and lowercase letters, numbers, and the underscore
(_) character. The first character in the prefix must be a letter. This conforms to the IEC
61850 standard.
Additional details regarding the logical node naming rules are provided in IEC 61850
standard parts 6 and 7-2. GE Digital Energy recommends that a consistent naming
convention be used for an entire substation project.
Select the Settings > Communications > IEC 61850 > Logical Node Prefixes menu item to
open the IEC 61850 logical node prefixes configuration window.

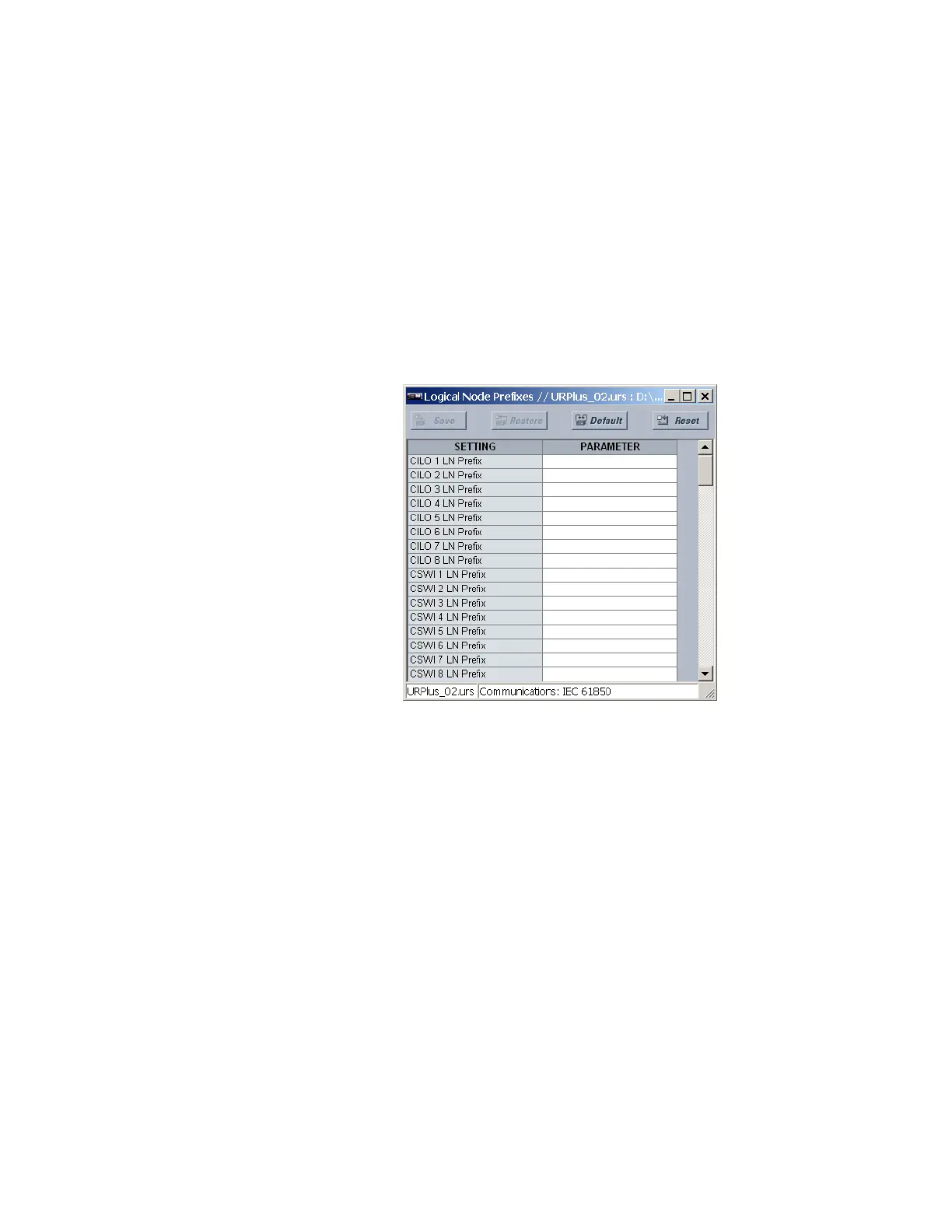

Figure 105: IEC 61850 logical node prefix configuration settings
The following IEC 61850 logical node name prefix settings are available for the D90
Plus
.
CILO1 LN Prefix through CILO8 LN Prefix
Range: six character ASCII string
Default: empty
These settings specify the prefixes for the interlocking logical nodes 1 through 8.
CSWI1 LN Prefix through CSWI8 LN Prefix
Range: six character ASCII string
Default: empty
These settings specify the prefixes for the switch controller logical nodes 1 through 8.
GGIO1 LN Prefix through GGIO5 LN Prefix
Range: six character ASCII string
Default: empty
These settings specify the prefixes for generic input and output logical nodes 1
through 5.
LPHD1 LN Prefix
Range: six character ASCII string
Default: empty
These settings specify the prefixes for the physical device information logical nodes.
