LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
METERING SUMMARY EDITOR CHAPTER 12: LOCAL INTERFACE

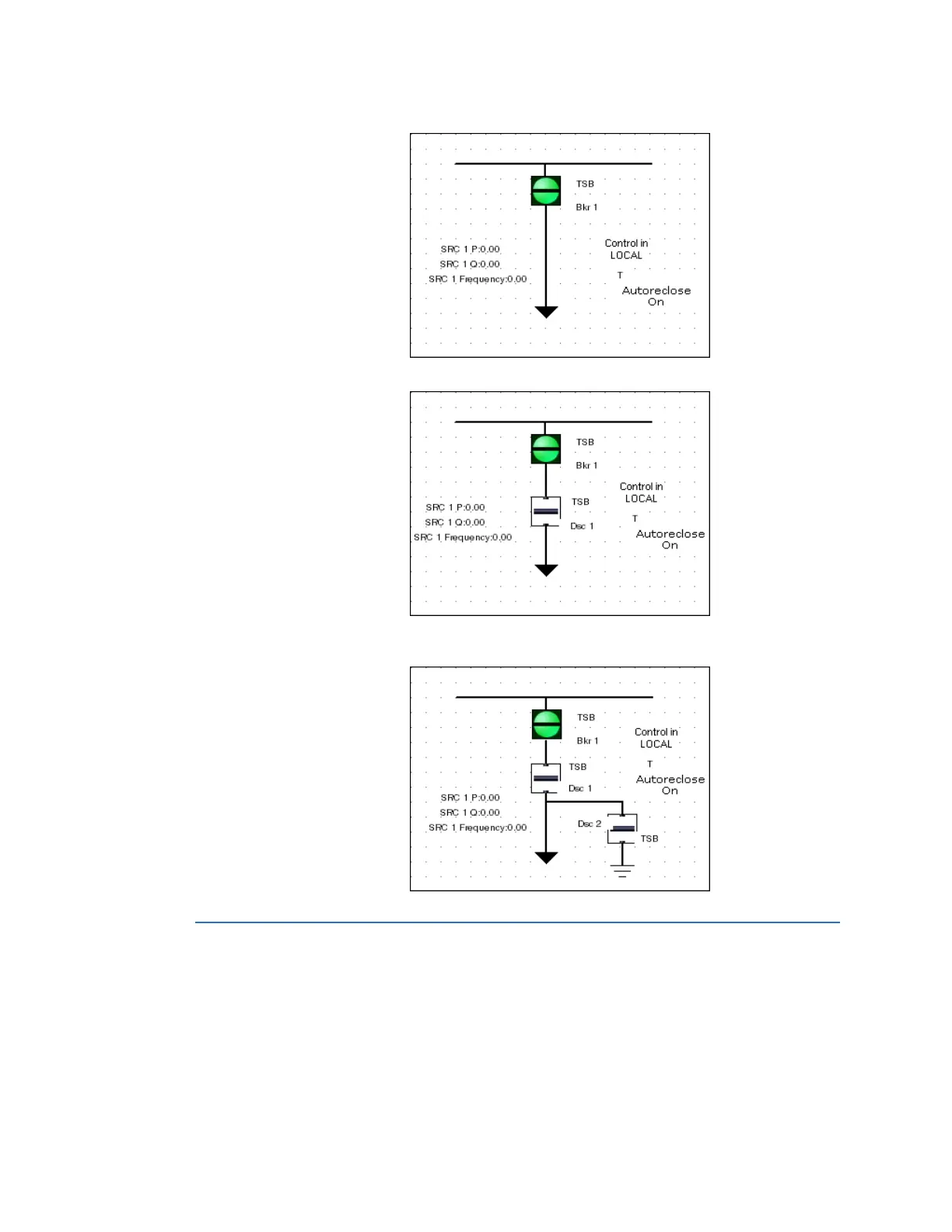

Figure 533: Pre-configured mimic diagram 10 (single-bus scheme)
Figure 534: Pre-configured mimic diagram 11 (single-bus scheme with line disconnect)
Figure 535: Pre-configured mimic diagram 12 (single-bus scheme with line and ground
disconnects)
Metering summary editor
Select the Settings > Local HMI > Metering Summary Editor menu to open the metering
configuration window.
