CHAPTER 12: LOCAL INTERFACE METERING SUMMARY EDITOR
D90
PLUS
LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL 599

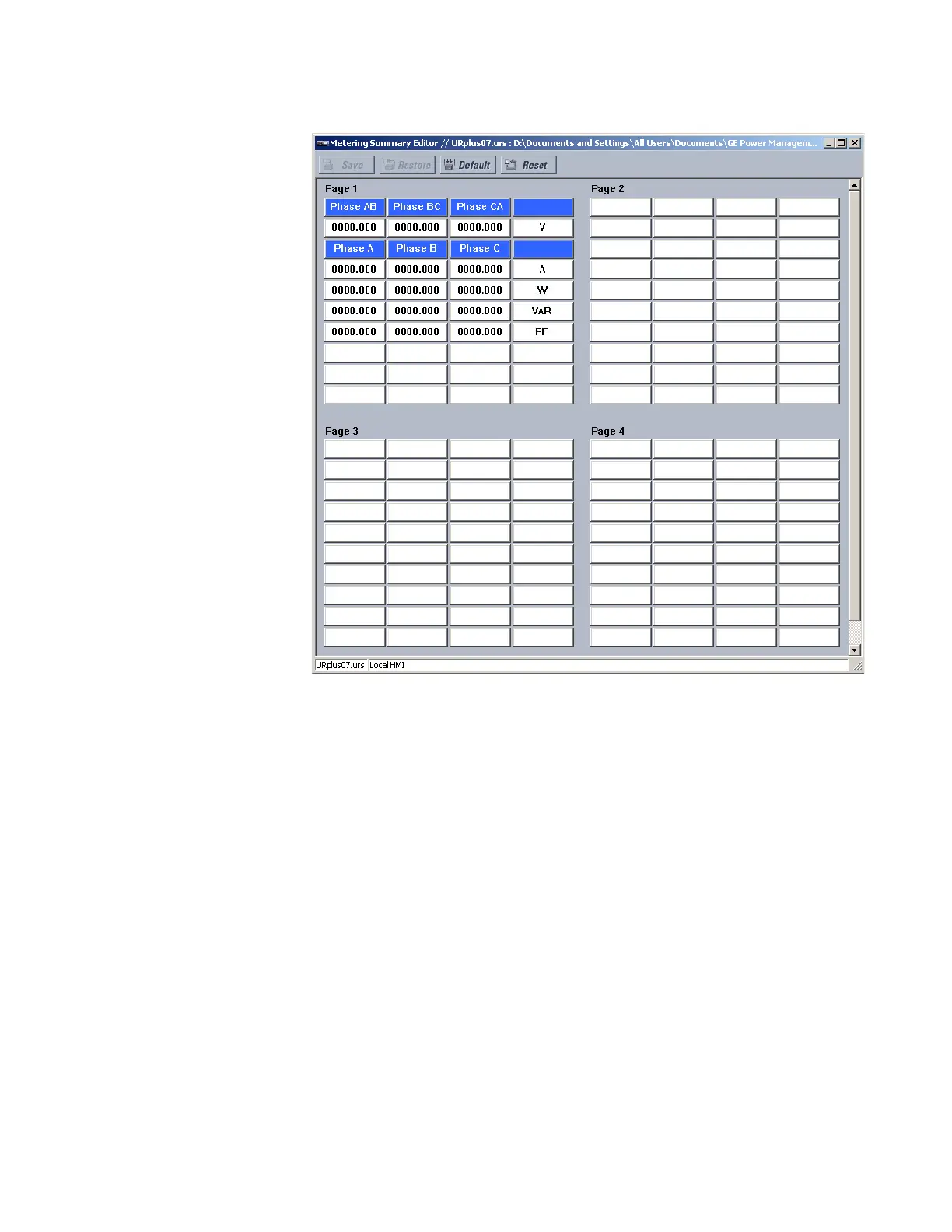

Figure 536: Metering summary editor window
A click of the left mouse button in a metering location opens the following window. You
enter header text of a selected font size and color, or select a metered quantity from the
drop-down list. A metered quantity can be a system voltage, current, real or reactive
power on a per-phase basis, for any configured source.
