LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
METERED VALUES CHAPTER 11: METERING
Ground current metering
Select the Actual Values > Metering > Ground Current menu to open the metered ground
current window.

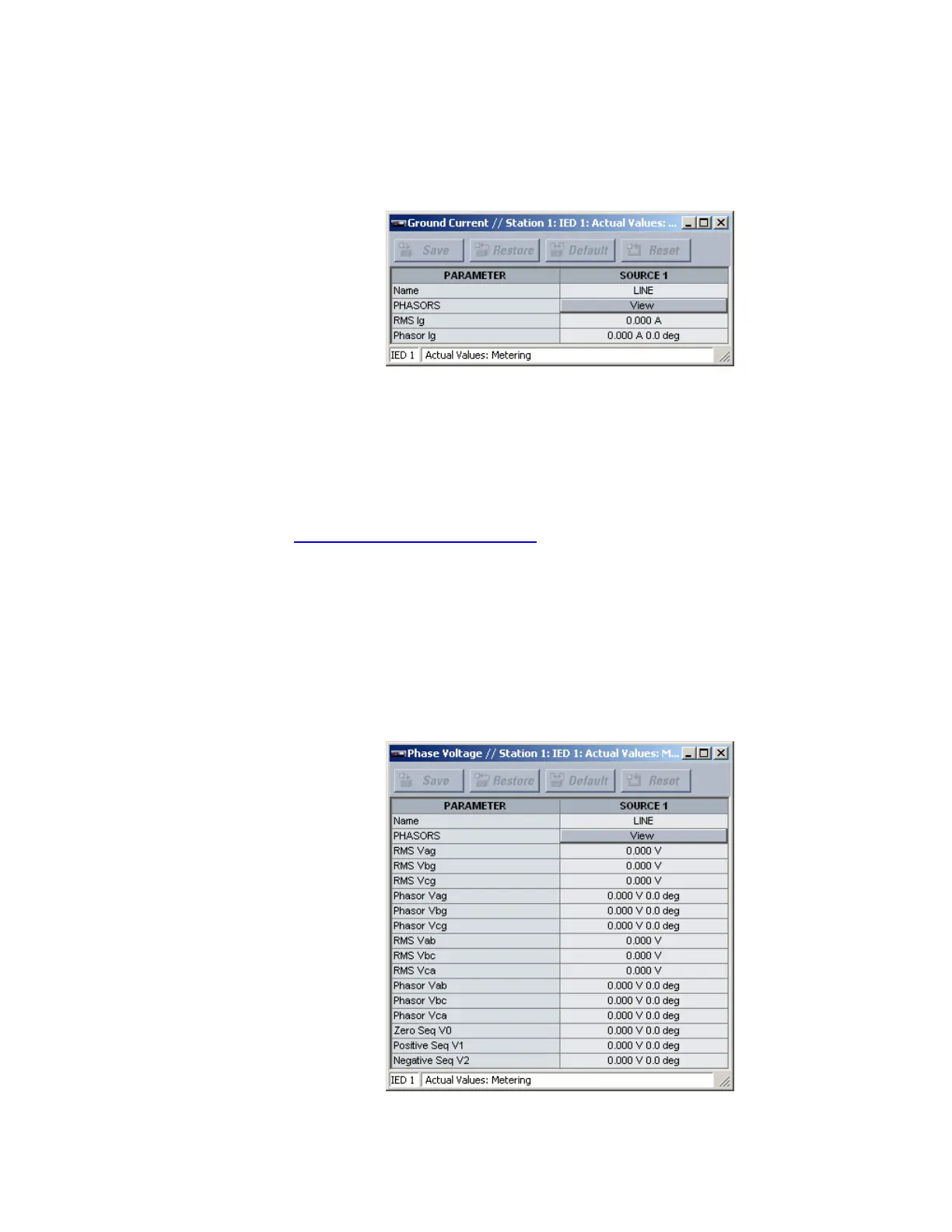

Figure 495: Ground current metering window
The following actual values display for each applicable source.
Name
Range: up to 20 alphanumeric characters
This value displays the user-programmed name for each source.
Phasors
Clicking the View button for this value allows the user to configure and display a
graphical representation of selected current and voltage phasors. For details, see
Observing current and voltage phasors
on page 571.
RMS Ig
Range: 0 to 999999.999 A in steps of 0.001
This actual value displays the ground current RMS for each source.
Phase voltage metering
Select the Actual Values > Metering > Phase Voltage menu to open the metered phase
voltage window.
Figure 496: Phase voltage metering window
The following actual values display for each applicable source.
