384 D90
PLUS
LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
PROTECTION INPUTS AND OUTPUTS CHAPTER 7: PROTECTION

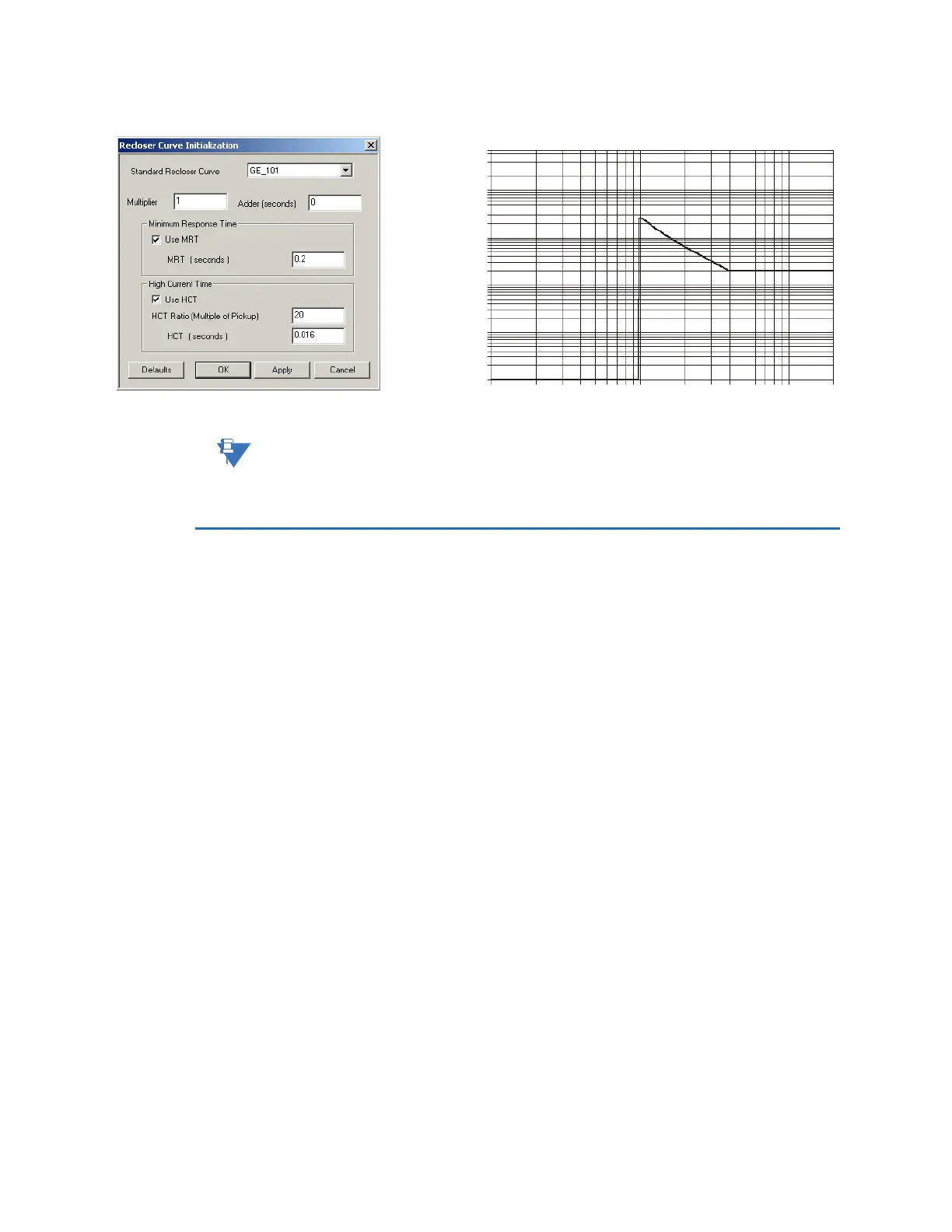

Figure 323: Composite recloser curve with HCT enabled
NOTE:
Configuring a composite curve with an increase in operating time at increased pickup
multiples is not allowed. If this is attempted, the EnerVista UR
Plus
Setup software generates
an error message and discards the proposed changes.
Protection inputs and outputs
Three groupings of protection inputs and outputs are defined: physical, shared, and virtual.
Within these three groupings there are two types: analog and digital.
Protection virtual inputs
There are 64 virtual inputs that can be programmed individually to respond to input signals
from the front panel interface and communications protocols. All virtual input operands
are defaulted to off (logic 0) unless the appropriate input signal is received.
Select the Settings > Protection > Protection Inputs/Outputs > Virtual Inputs menu to
access the protection virtual input configuration settings.
$&'5
0XOWLSOHRISLFNXS
5HVHWDQGRSHUDWHWLPHPV
