GE D90 Plus - Protection Virtual Outputs

386 D90
PLUS
LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
PROTECTION INPUTS AND OUTPUTS CHAPTER 7: PROTECTION

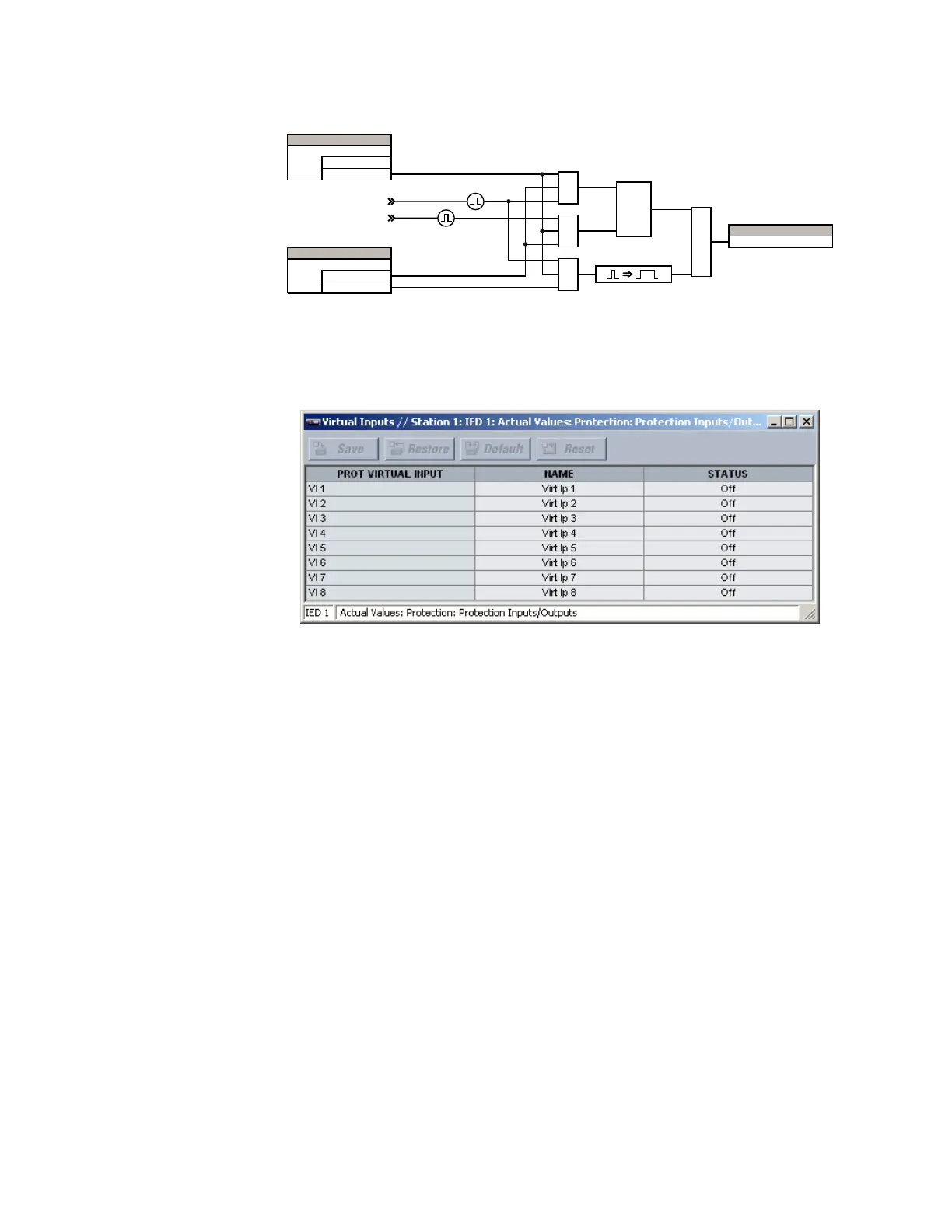

Figure 325: Protection virtual input logic
Protection virtual input actual values
Select the Actual Values > Protection > Protection Inputs/Outputs > Virtual Inputs menu
to open the protection virtual input actual values window.
Figure 326: Protection virtual input actual values
The following actual values are available for all enabled protection virtual inputs.
Name
Range: up to 12 alphanumeric characters
This value displays the programmed
ID for the corresponding protection virtual input.
Status
Range: On, Off
This value indicates the logic state of the virtual input.
Protection virtual outputs
There are 96 virtual outputs that can be assigned via FlexLogic. Virtual outputs are
resolved in each pass through the evaluation of FlexLogic equations.
Select the Settings > Protection > Protection Inputs/Outputs > Virtual Outputs menu to
access the protection virtual output configuration settings.
9LUWXDOLQSXWWR2)) 
9LUWXDO WR21 LQSXW
$1'
$&'5
6(77,1*
'LVDEOHG 
(QDEOHG 
)XQFWLRQ
6(77,1*
/DWFKHG
6HOI5HVHW
7\SH
$1'
$1'
/DWFK
6
5
25
)/(;/2*,&23(5$1'
9LUW,S
