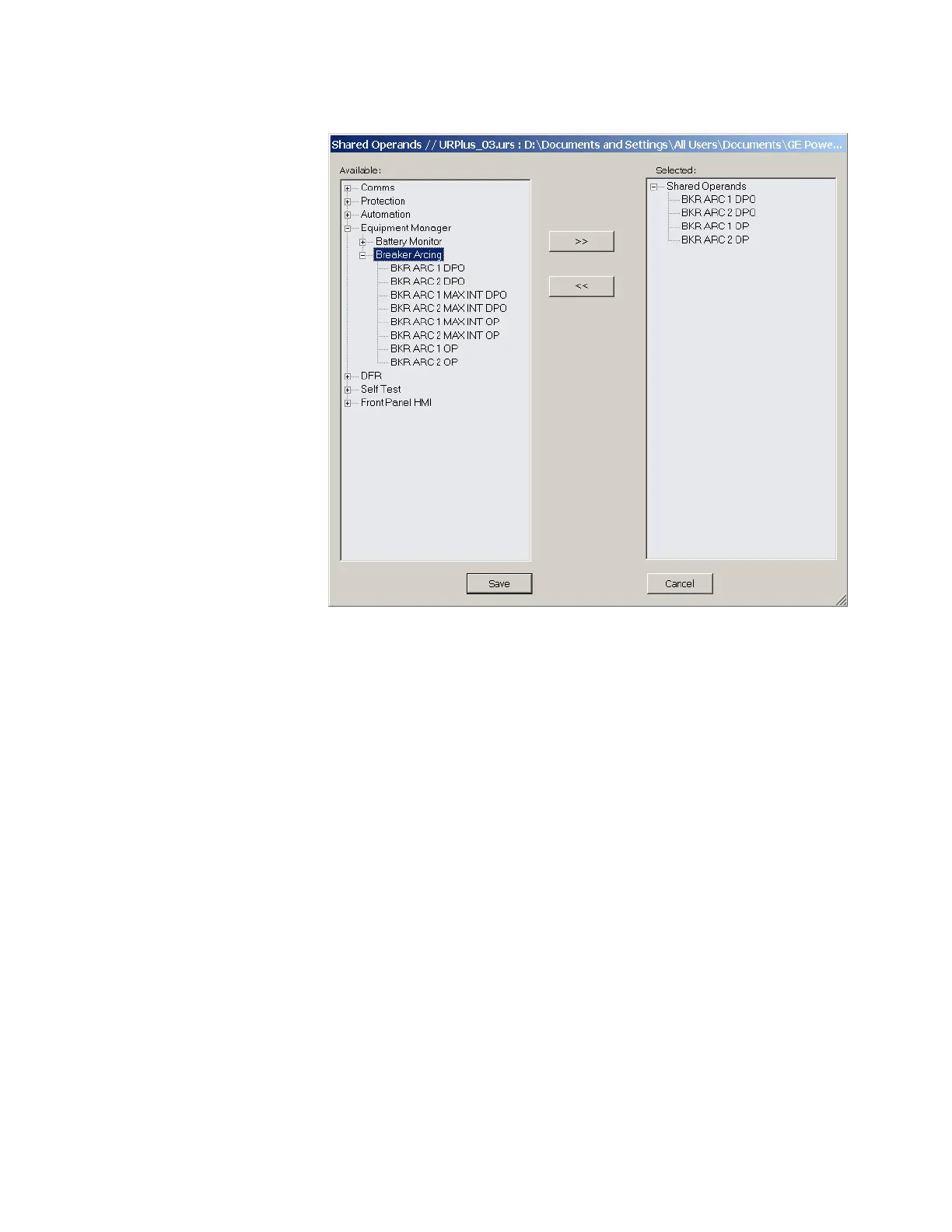

Figure 505: Shared operands configuration window
The left side of this screen displays all D90
Plus
operands that are available to the metering
function as shared operands. Select any operands from the other five primary features by
clicking the >> button. Operands can be de-assigned as shared operands by clicking the
<< button.
Customizing the metering logic operands
Select the Settings > Configure FlexOperands menu to open the user-configurable
operands window.
