160 D90
PLUS
LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL
DIRECT INPUTS AND OUTPUTS CHAPTER 6: COMMUNICATIONS

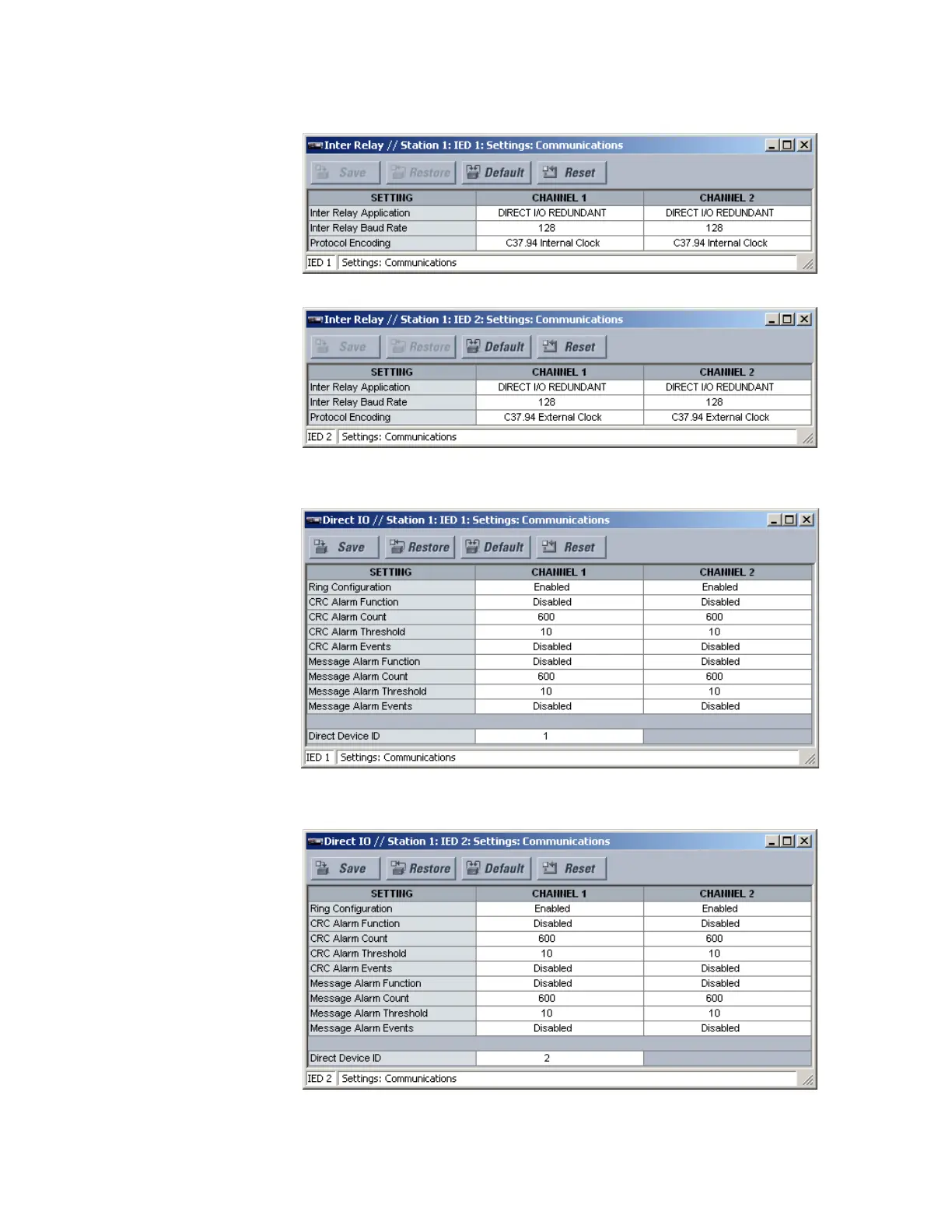

Figure 139: Inter-relay communications settings for IED 1
Figure 140: Inter-relay communications settings for IEDs 2 through 3
For UR
Plus
-series IED 1:
Figure 141: Direct input and output settings for IED 1
For UR
Plus
-series IED 2:
Figure 142: Direct input and output settings for IED 2
For UR
Plus
-series IED 3:
