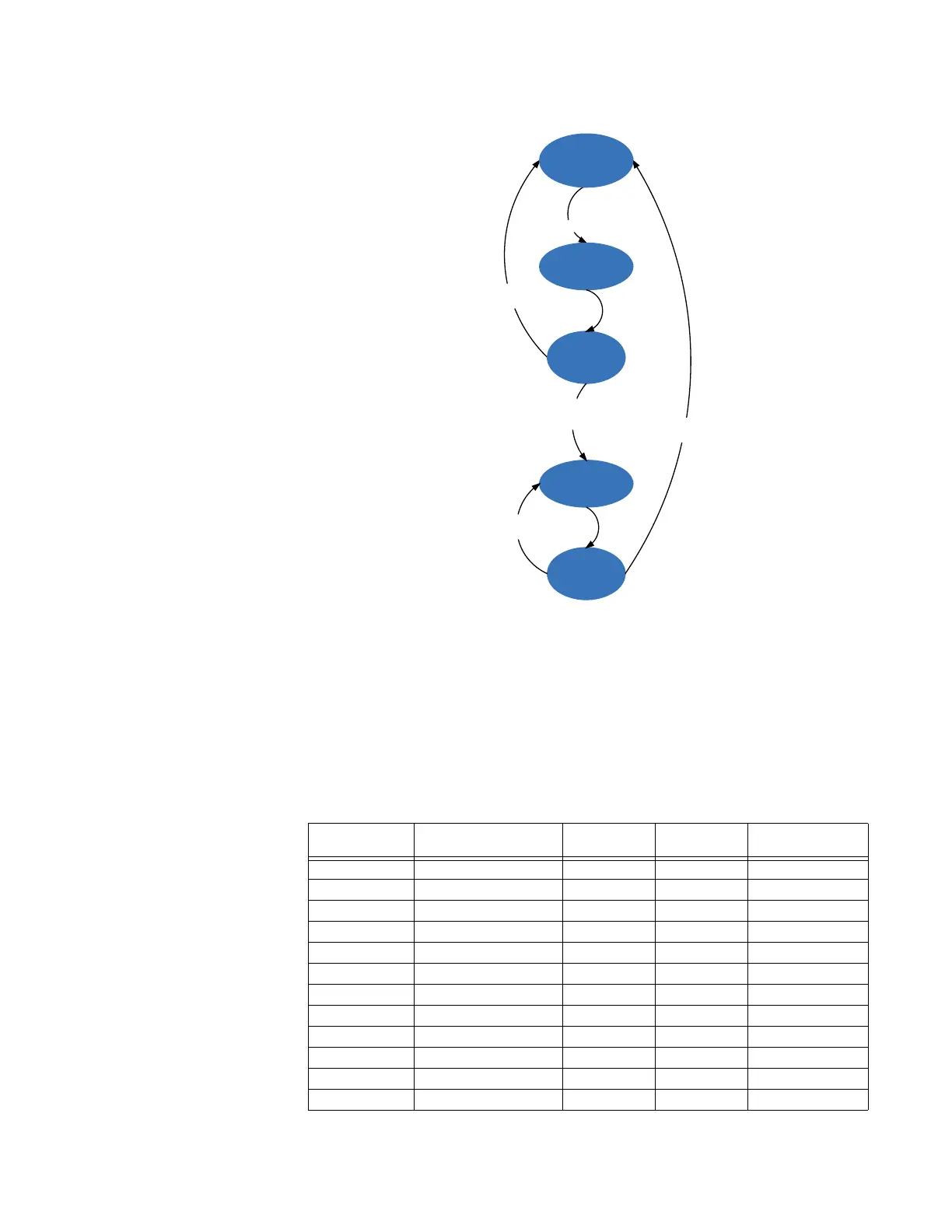

Figure 444: Trigger and re-trigger sequence
The length of a transient record also is user-configurable. The number of transient records
stored by the D90
Plus
is a function of the record length, the time-resolution of the recording,
and of the number of configured channels. The D90
Plus
automatically calculates the
number of transient records based on the user-defined setting values.
The transient recorder has two storage modes: protected and automatic overwrite. When
the memory is filled, either no new records are written to memory (protected mode) or the
oldest record is overwritten (automatic overwrite mode).
The D90
Plus
contains a finite amount of memory for record storage. The table shows how
transient recorder configuration affects the number of available records.
Table 36: Transient records stored by the D90
Plus
(examples)
Records Sampling rate Digital
channels
Analog
channels
Record length
8 256 samples/cycle 128 16 57 cycles
24 256 samples/cycle 128 16 22 cycles
48 256 samples/cycle 128 16 11 cycles
8 128 samples/cycle 128 16 104 cycles
24 128 samples/cycle 128 16 40 cycles
48 128 samples/cycle 128 16 20 cycles
20 64 samples/cycle 128 16 80 cycles
64 64 samples/cycle 128 16 26 cycles
24 32 samples/cycle 64 8 135 cycles
64 32 samples/cycle 64 8 53 cycles
41 16 samples/cycle 64 8 124 cycles
64 16 samples/cycle 64 8 81 cycles
