CHAPTER 4: FRONT PANEL INTERFACE ANNUNCIATOR
D90
PLUS
LINE DISTANCE PROTECTION SYSTEM – INSTRUCTION MANUAL 79
The configured IP protocol values display for each of the available Ethernet ports. Ethernet
port 1 is the port on the main CPU card in slot D, while port 2 is located at the top of the slot
C communications processor and port 3 at the bottom. The displayed MAC address is for
Ethernet port 1. The MAC address of Ethernet port 2 is the MAC address of Ethernet port 1
incremented by 1. The MAC address of Ethernet port 3 is the MAC address of Ethernet port
1 incremented by 2.

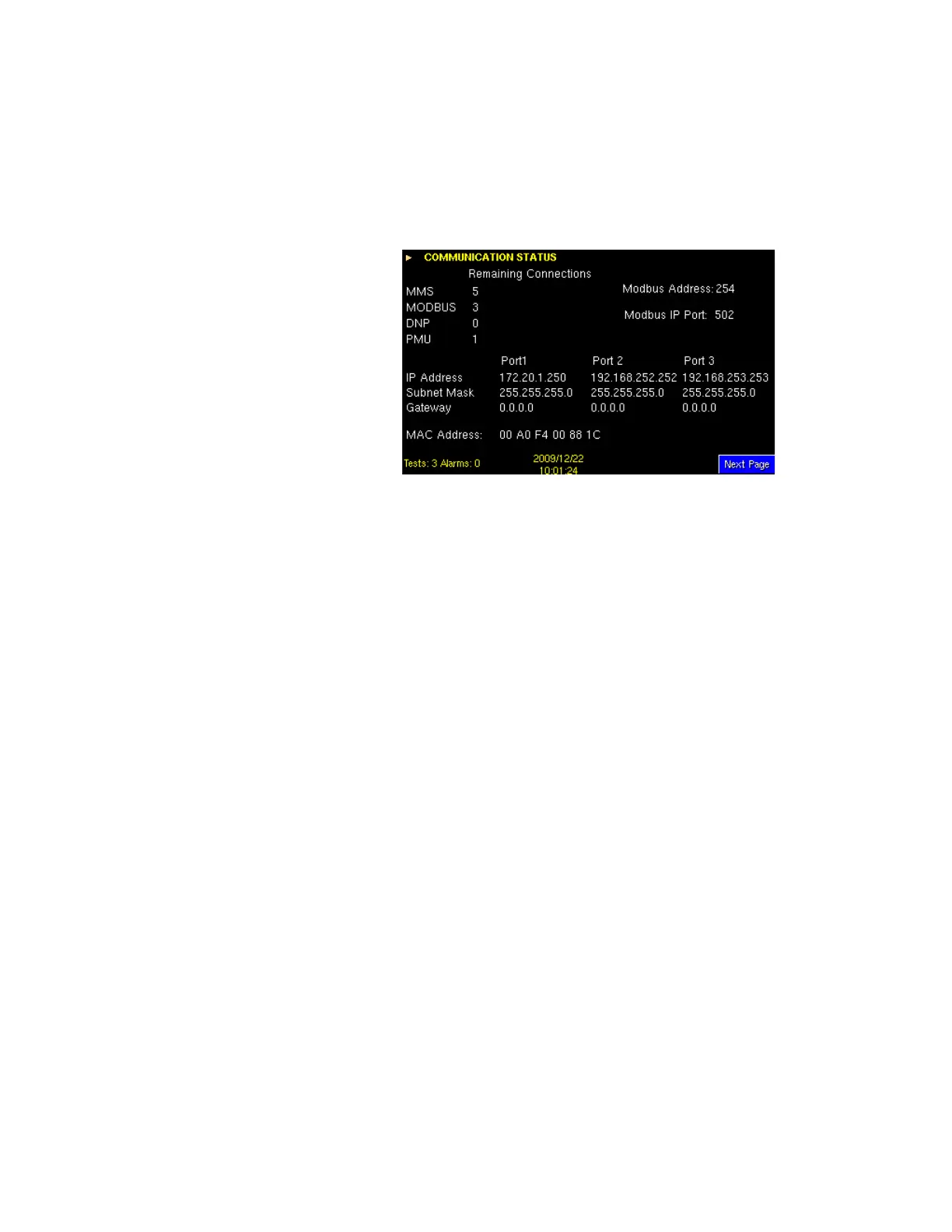

Figure 60: Communication status page
