GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 4-32 Section 4-8 - Mechanical Function Checks

4-8-2 Air filter set Function Validation Procedure

Check if the air filter is placed deep inside.

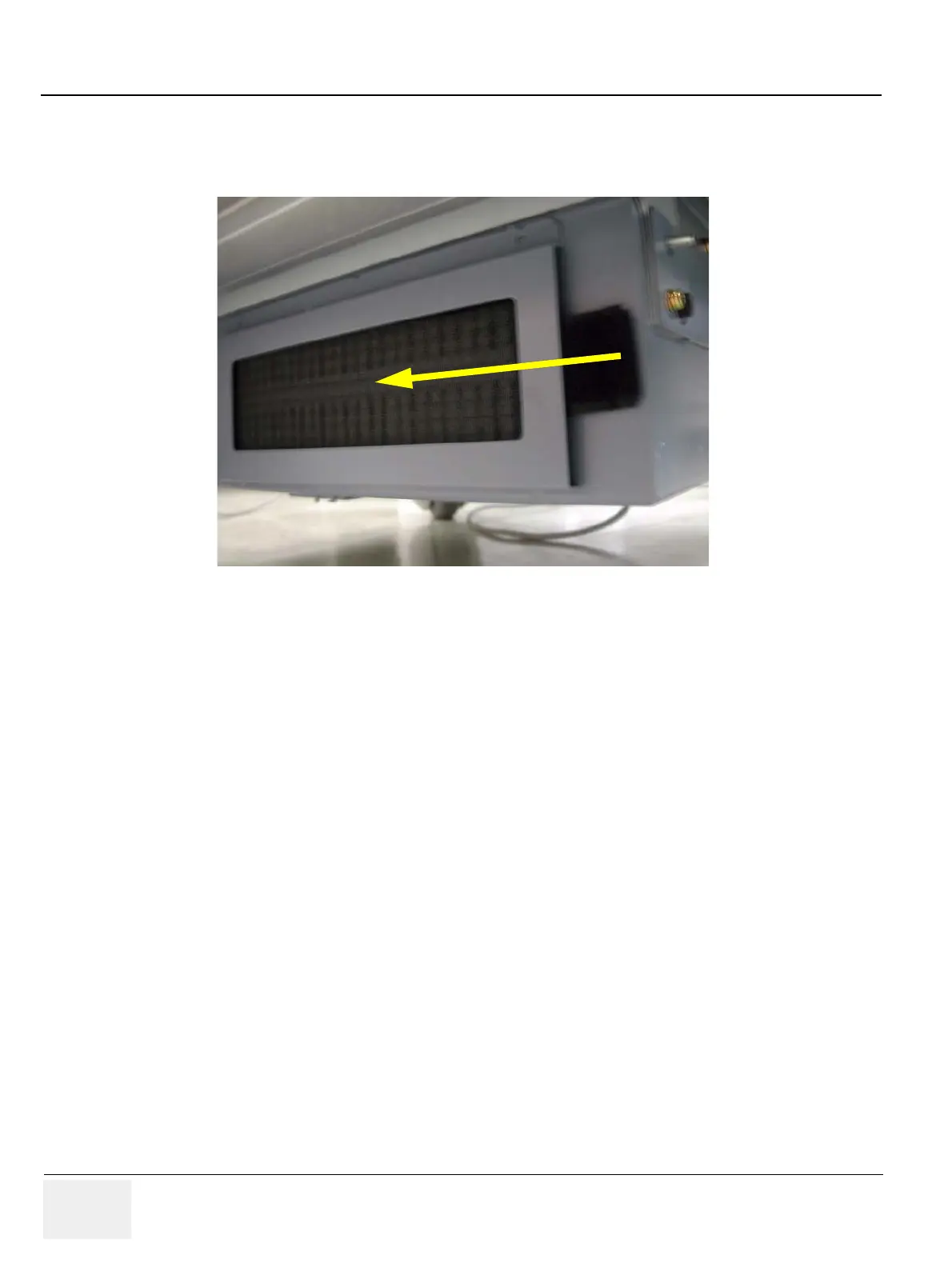

Figure 4-30 Air Filter Set
