LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 4-34 Section 4-8 - Mechanical Function Checks

4-8-4 Cup holder Function Validation Procedure

Check if the cup holder can not be removed easily.

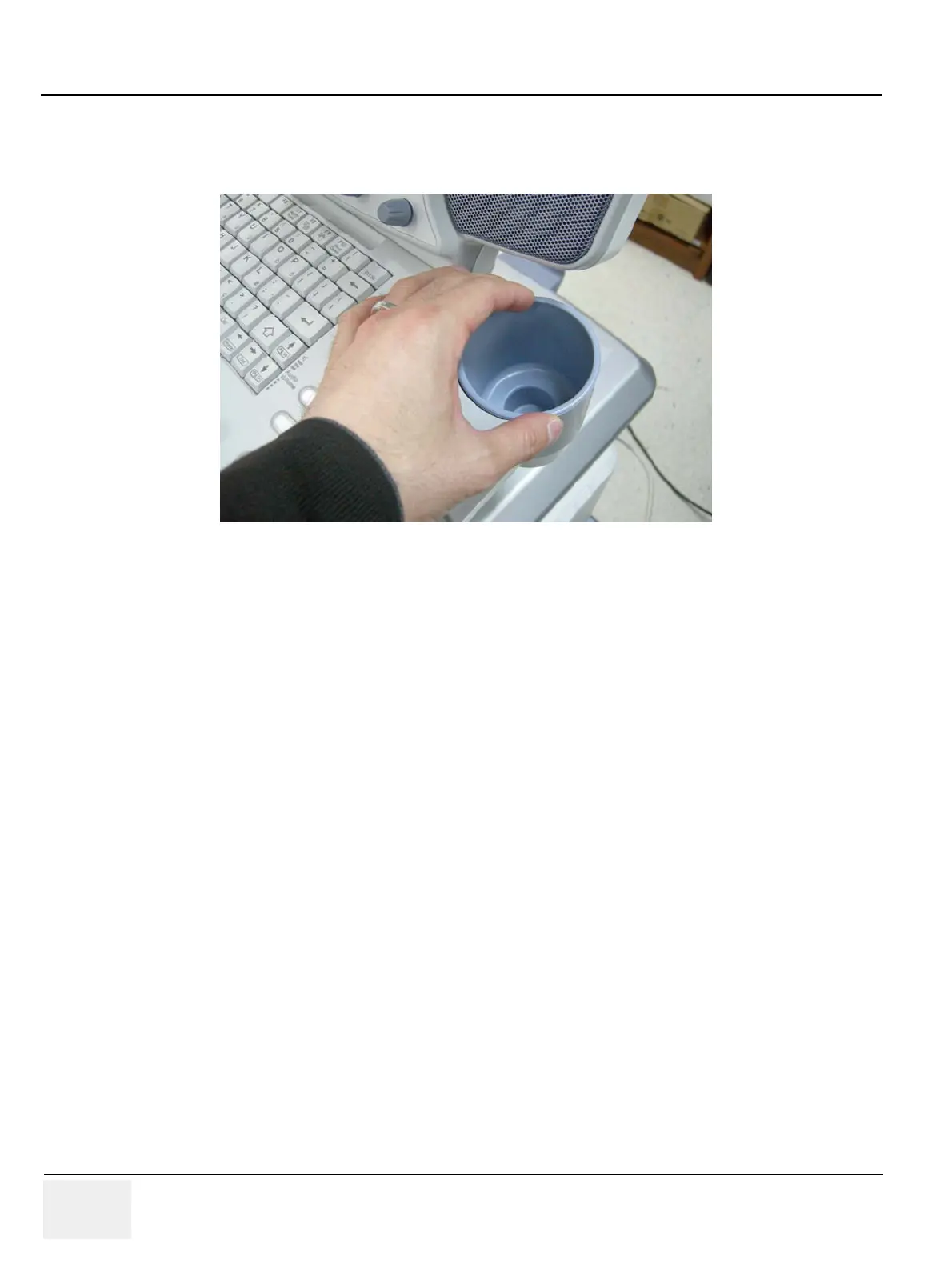

Figure 4-32 Cup Holder
