GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 8 - Page 8-185

8-7-15 Rear Handle installation

1.) Unscrew 2 screws (1-2) and remove Rear hook.

2.) Unscrew 2 screws (1-2) and remove the rear handle bracket.

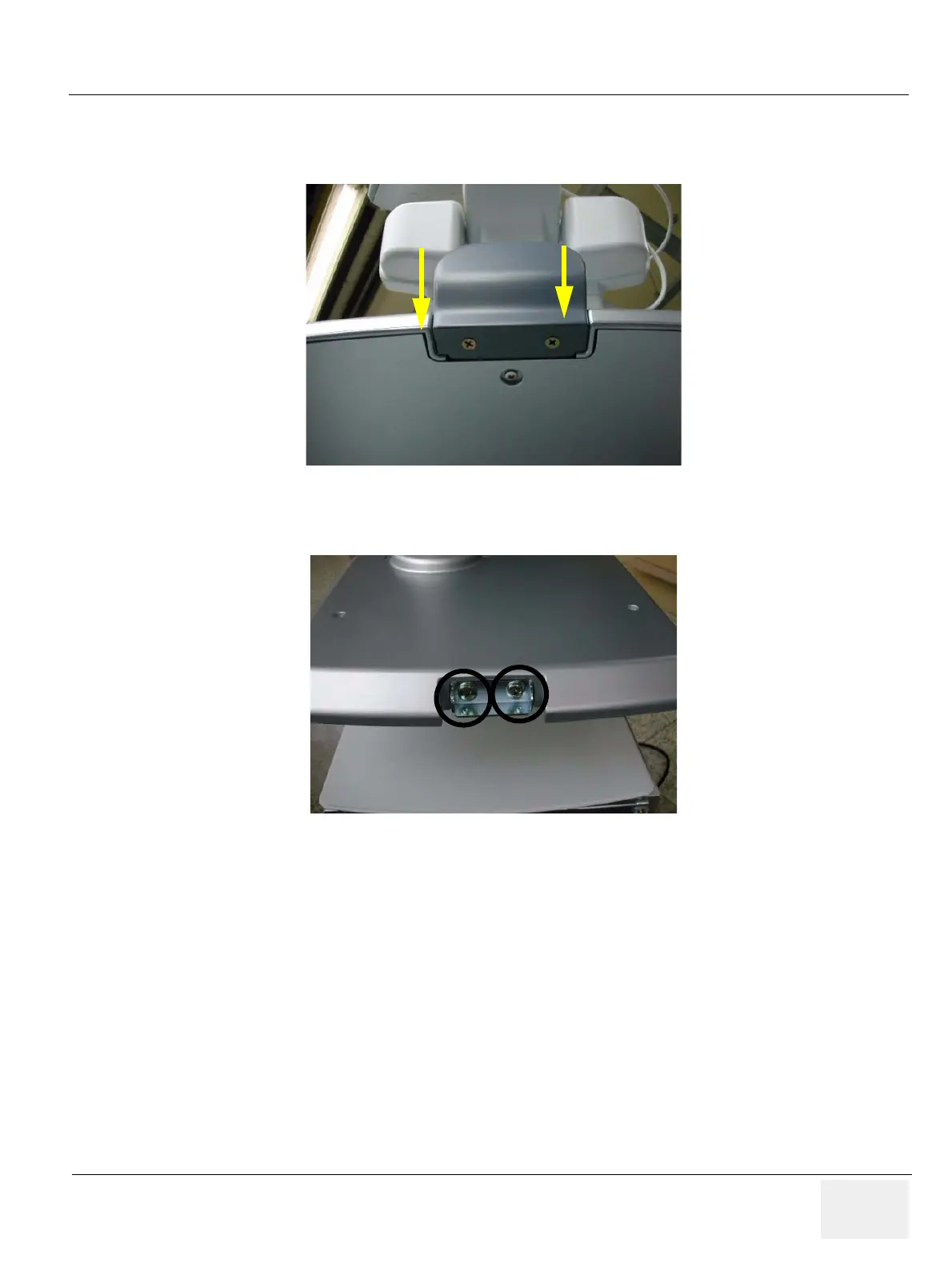

Figure 8-302 Rear Handle Installation

Figure 8-303 Rear Handle Installation
