GE HEALTHCARE
DIRECTION 5394152, Revision 5
LOGIQ™ P6/P6 PRO SERVICE MANUAL
Chapter 8 - Page 8-73
8-2-30 SYSCONML Assy
8-2-30-1 Tools
• Common Phillips screwdrivers
8-2-30-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-30-3 Removal procedure
1.) Remove the Side Right Cover. Refer to the 8-2-14 "Right or Left Side Cover" on page 8-48.
2.) Remove the EMI Cover R. Refer to the 8-2-24 "EMI Cover L and R" on page 8-63.
3.) Disconnect the AEXP cable. Refer to the Figure 8-112.
4.) Remove the SYSCONML Assy in slot #4 in the nest box.
5.) Eject are ASIR ROM from old SYSCONML with regular screw driver.
Separate ASIR ROM form new SYSCONML as same procedure.

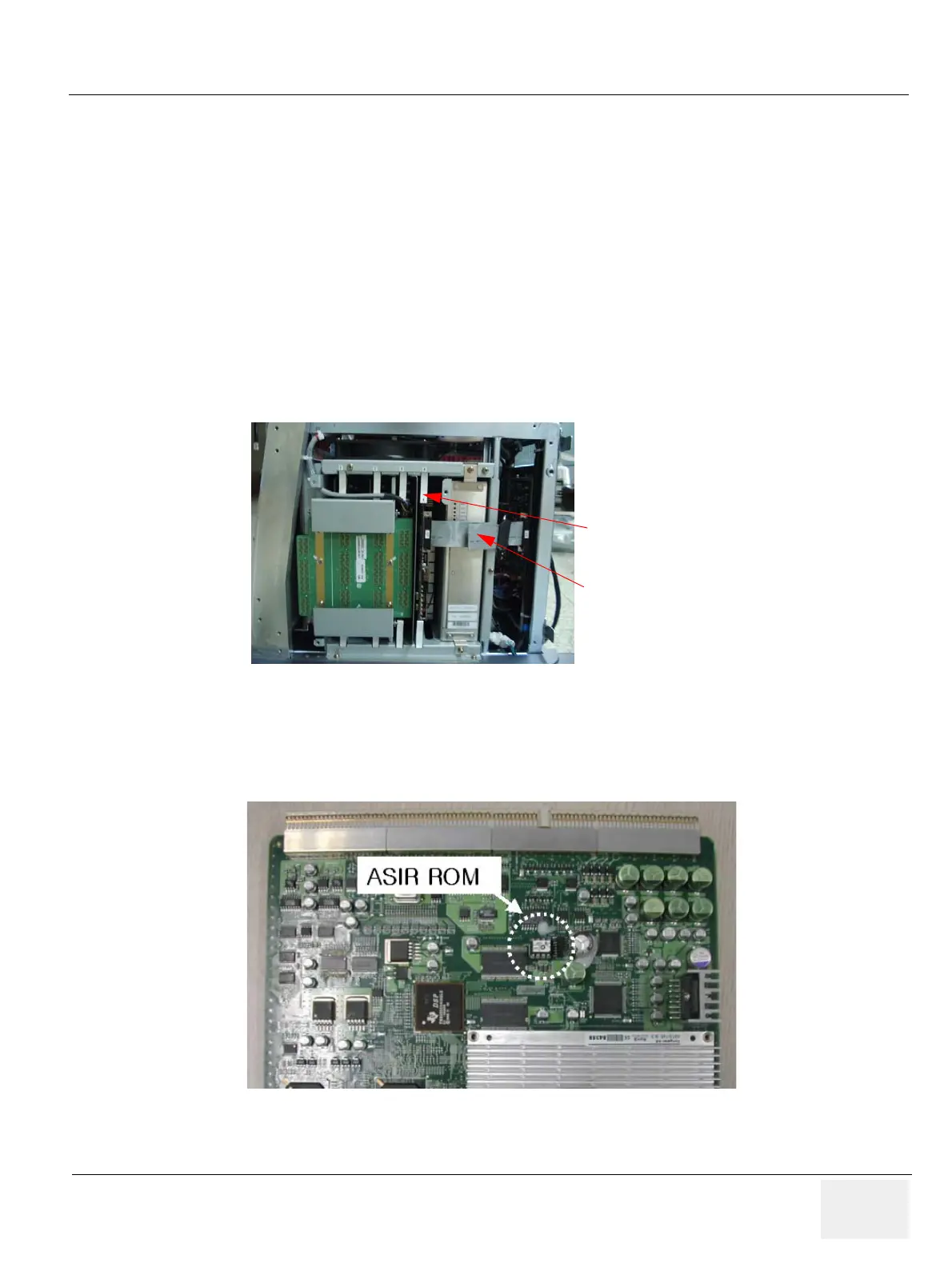

Figure 8-112 SYSCONML Assy
Figure 8-113 ASIR location
SYSCONML Assy
AEXP cable
To Next Page
