GE HEALTHCARE
DIRECTION 5394152, Revision 5
LOGIQ™ P6/P6 PRO SERVICE MANUAL
Page 4-4 Section 4-3 - General Procedure
4-3-2 Power Off / Shutdown
NOTE: After turning off a system, wait at least ten seconds before turning it on again. The system may not be
able to boot if power is recycled too quickly.
4-3-2-1 Scanner Shutdown
1.) Press the On/Off Key at the front of the System once to display the SYSTEM - EXIT menu.
2.) Select Shutdown from the SYSTEM - EXIT menu.
4-3-2-2 Switch off the System
1.) Switch OFF the Circuit Breaker at the back of the scanner.
2.) Unplug the power cord if necessary. For example : Servicing or relocating the scanner.

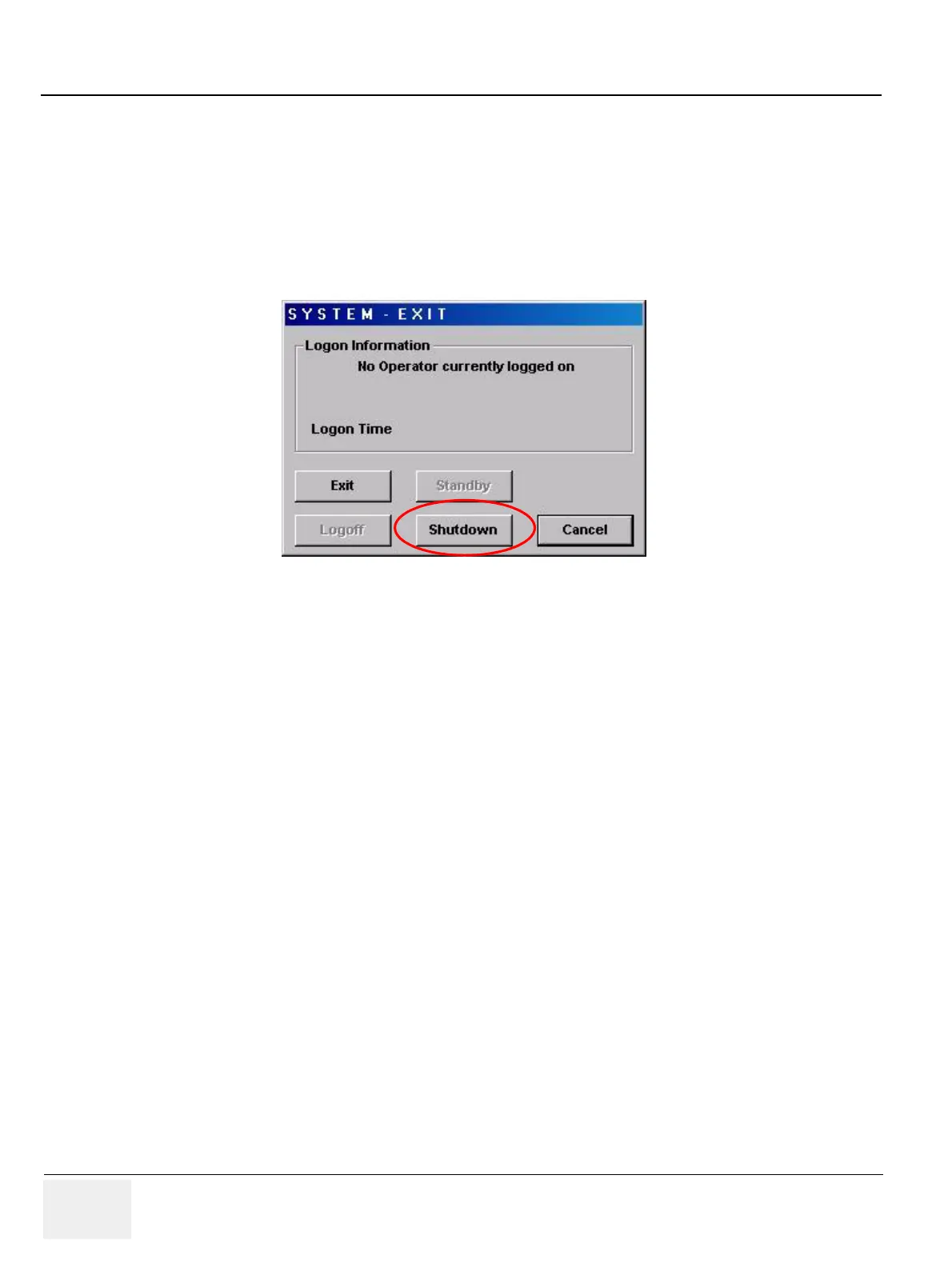

Figure 4-3 System Exit Menu for Power Down

GE LOGIQ P6 Series Specifications

General

Power Supply	100-240 VAC, 50/60 Hz
Imaging Modes	B-Mode, M-Mode, Color Doppler, Power Doppler
Applications	Vascular, Musculoskeletal
Operating Temperature	10°C to 40°C
Display	15-inch LCD
Relative Humidity	20% to 80% (non-condensing)
