LOGIQ™ P6/P6 PRO SERVICE MANUAL
Page 8-158 Section 8-7 - Mechanical Option Installation instruction
8-7-4 Drawer Option installation
1.) Push the drawer from the front to the rear direction.
2.) Unscrew 2 existing screws from the middle cover.
3.) Using the bracket, fix the drawer by screwing 3 screws each of left and right side of the drawer.

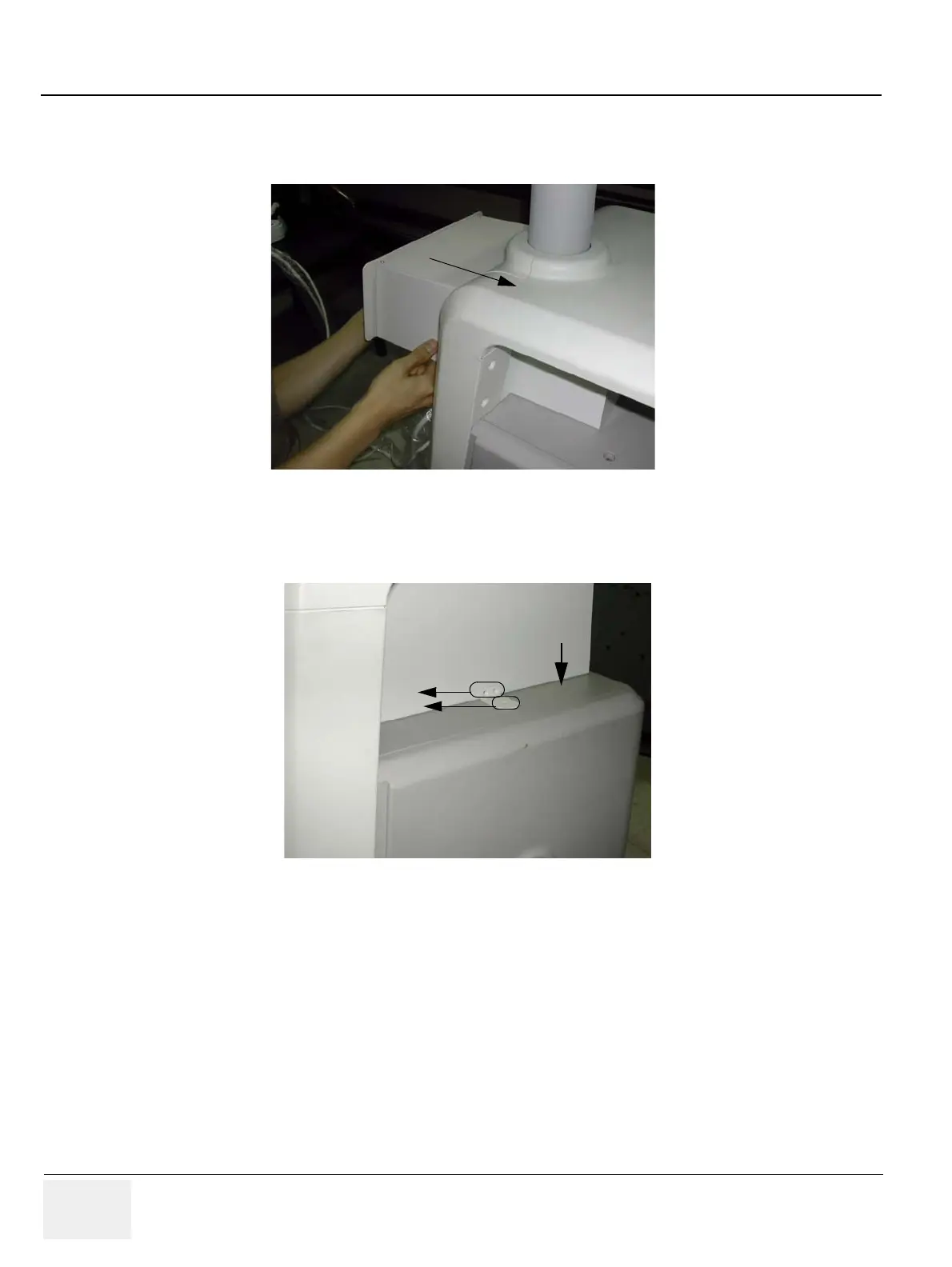

Figure 8-238 Drawer Option Installation
Figure 8-239 Installation of Drawer Option
Middle Cover
2337572
(Screw, FH M3x6 WHT)
5176744
(Screw, BH M4x20 WHT)

GE LOGIQ P6 Series Specifications

General

Power Supply	100-240 VAC, 50/60 Hz
Imaging Modes	B-Mode, M-Mode, Color Doppler, Power Doppler
Applications	Vascular, Musculoskeletal
Operating Temperature	10°C to 40°C
Display	15-inch LCD
Relative Humidity	20% to 80% (non-condensing)
