LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 8-160 Section 8-7 - Mechanical Option Installation instruction

8-7-6 BW Printer Fixture Keyboard installation

1.) Put loctite 290 on the screw(2159634, BH M4X10 WHT)'s edge.

2.) Fix the BW printer brkt beneath the keyboard by the (2159634, BH M4X10 WHT).

3.) Fix the BW printer base bracket to the BW Printer by screwing 4 screws(2306562, FH M3x6 YEL)

(1-4).

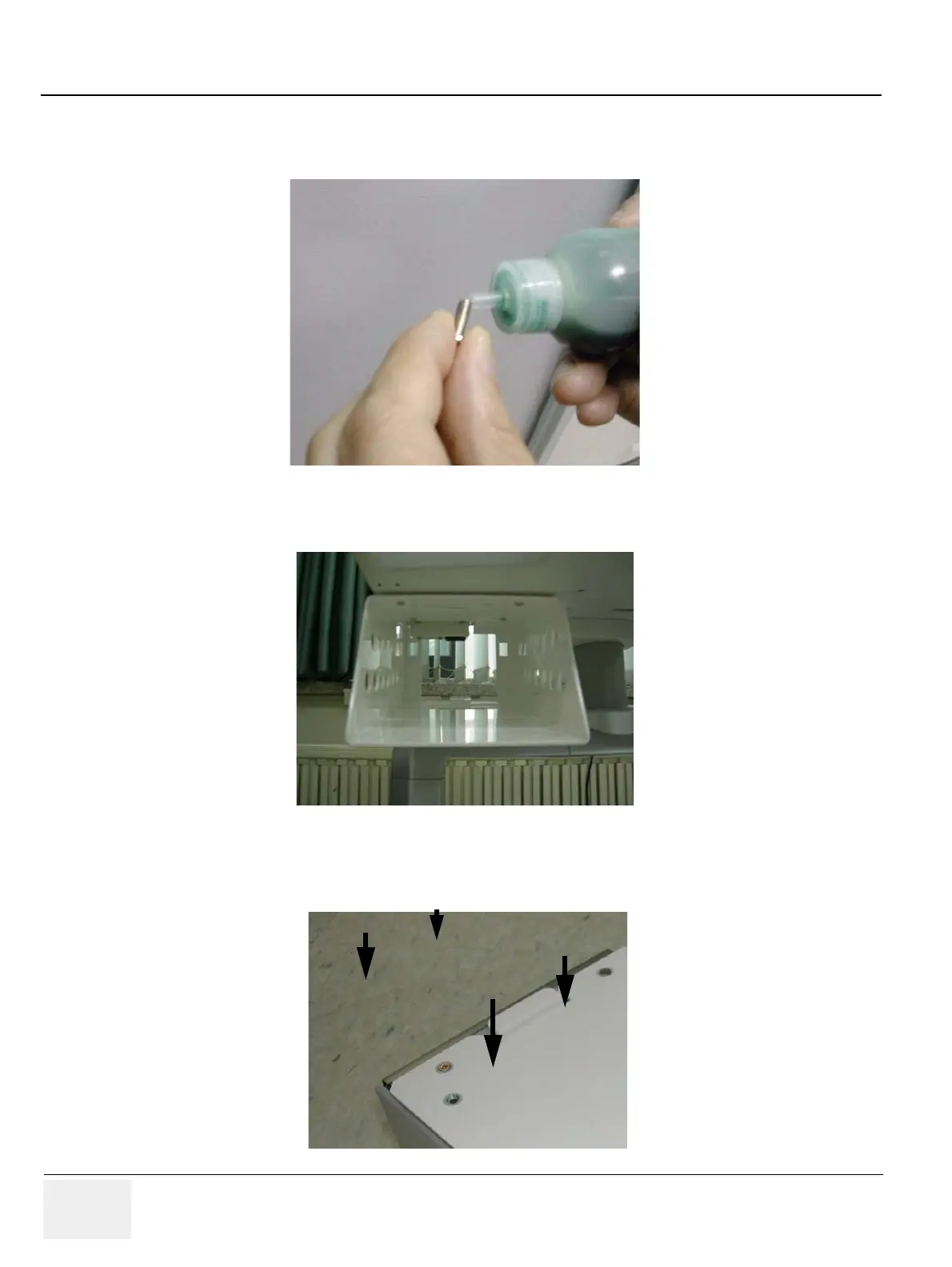

Figure 8-242 BW Printer Fixture Keyboard installation

Figure 8-243 BW Printer Fixture Keyboard installation

Figure 8-244 BW Printer Fixture Keyboard installation

base bracket

(1)

(2)

(3)

(4)
