GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 8 - Page 8-161

8-7-6 BW Printer Fixture Keyboard installation (cont’d)

4.) Slide and place the BW printer with printer plate to the BW printer cover and screw 2 screws

(5178673, FH M4x6 WHT) (1-2) to fix it.

5.) Connect the Power Cable and USB Cable from the printer to the system and tie the cable properly.

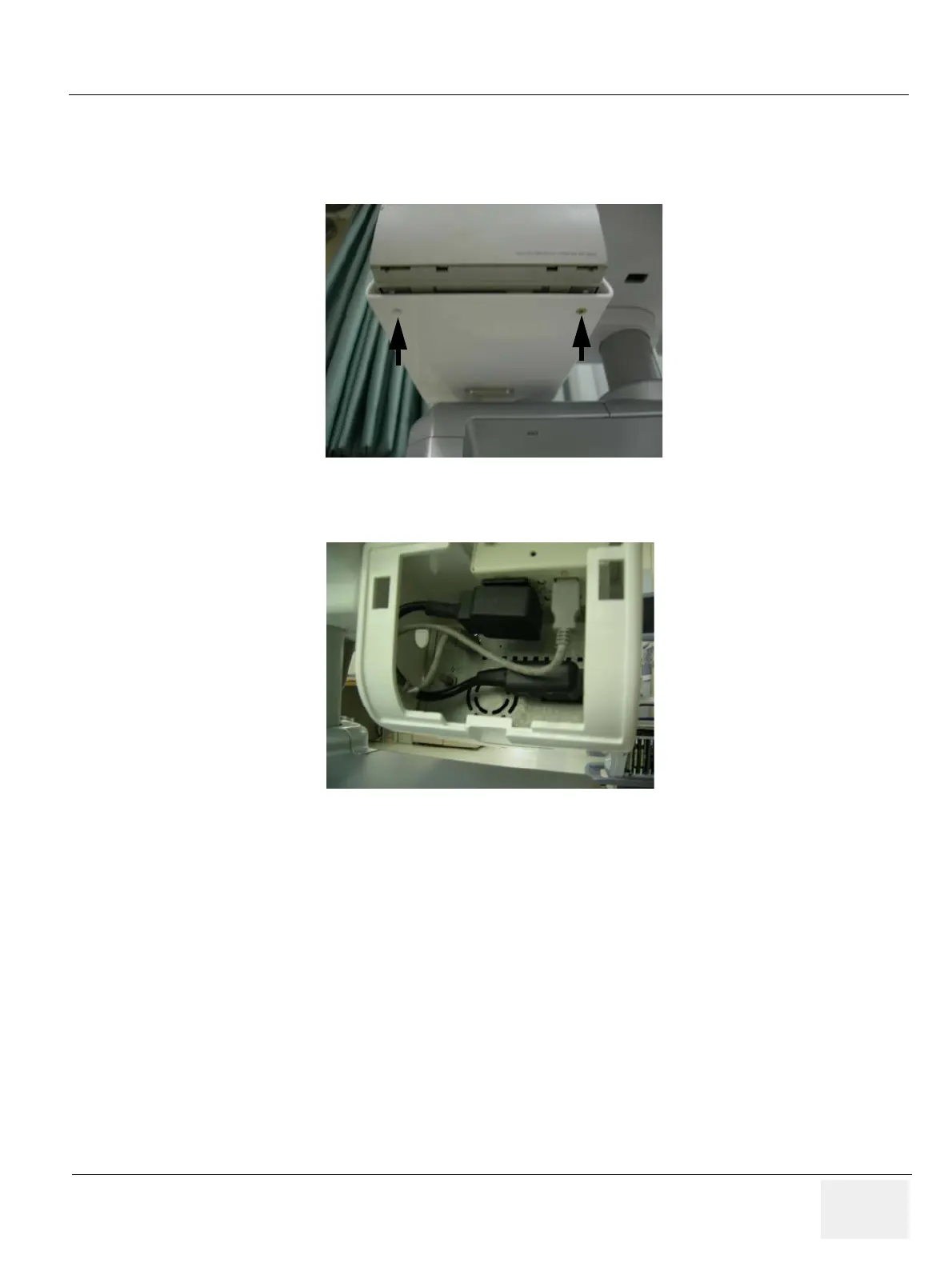

Figure 8-245 BW Printer Fixture Keyboard installation

Figure 8-246 BW Printer Fixture Keyboard installation
