GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 8 - Page 8-165

8-7-8 Color Printer Fixture Middle installation - UP23MD Printer

1.) Install color printer on the top of the base bracket by screw 4 screws(2306562, FH M3x6 YEL).

2.) Unscrew 2 existing screws from the middle cover.

3.) Screw 1 screw (5176744, BH M4x20 WHT) on each side of the system to fix the Color printer with

base bracket to the system.

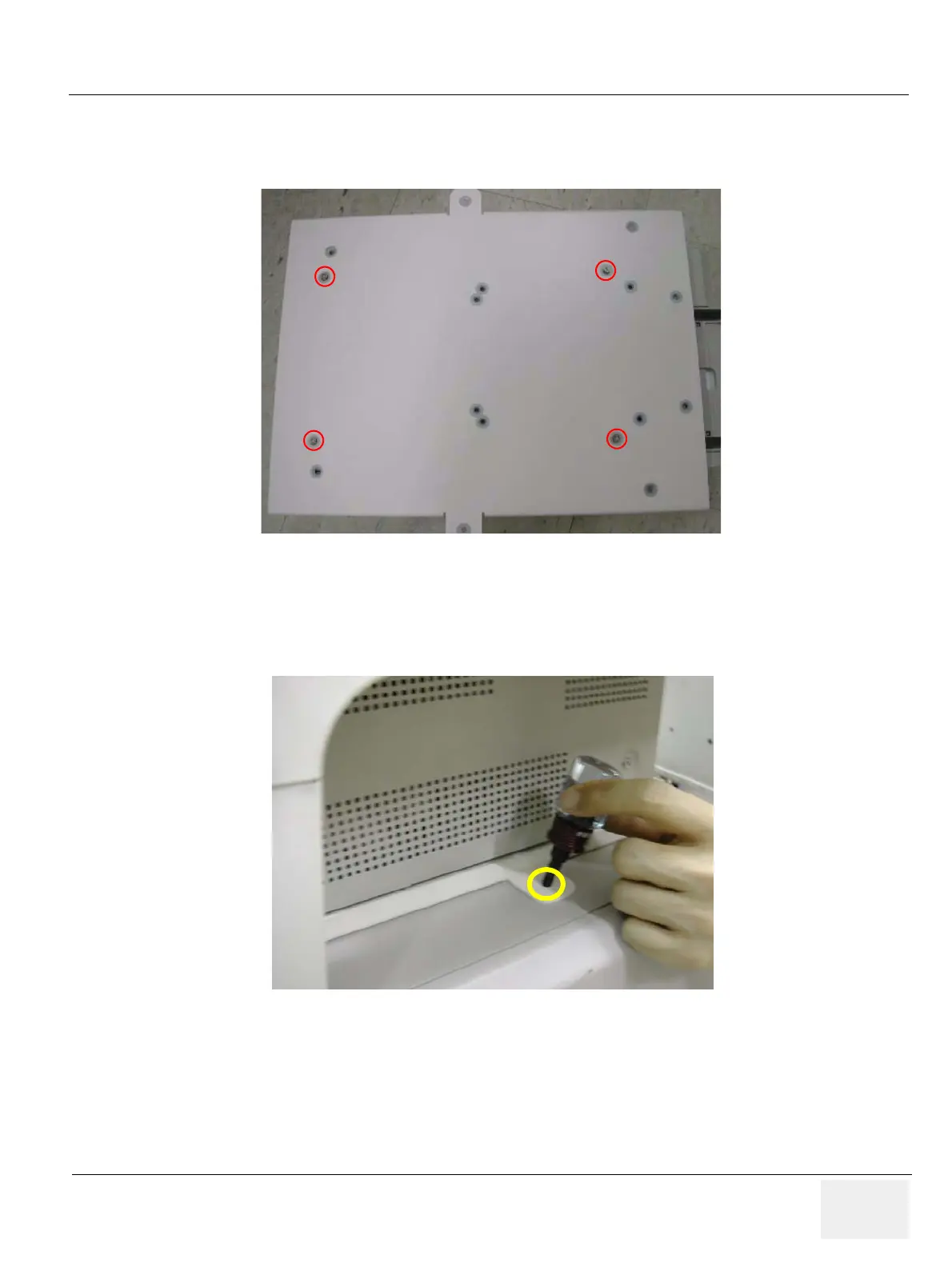

Figure 8-253 Color Printer Fixture Middle installation

Figure 8-254 Color Printer Fixture Middle installation
