GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 5-26 Section 5-1 - Overview

5-7-4 Service Home Page

When the Service Interface is started, the Service Home Page appears. The Home Page contains the

software revision along with the hardware inventory and the results of the latest System Health

Information. The navigation bar at the top of the screen allows the user to select from several tools and

utilities.

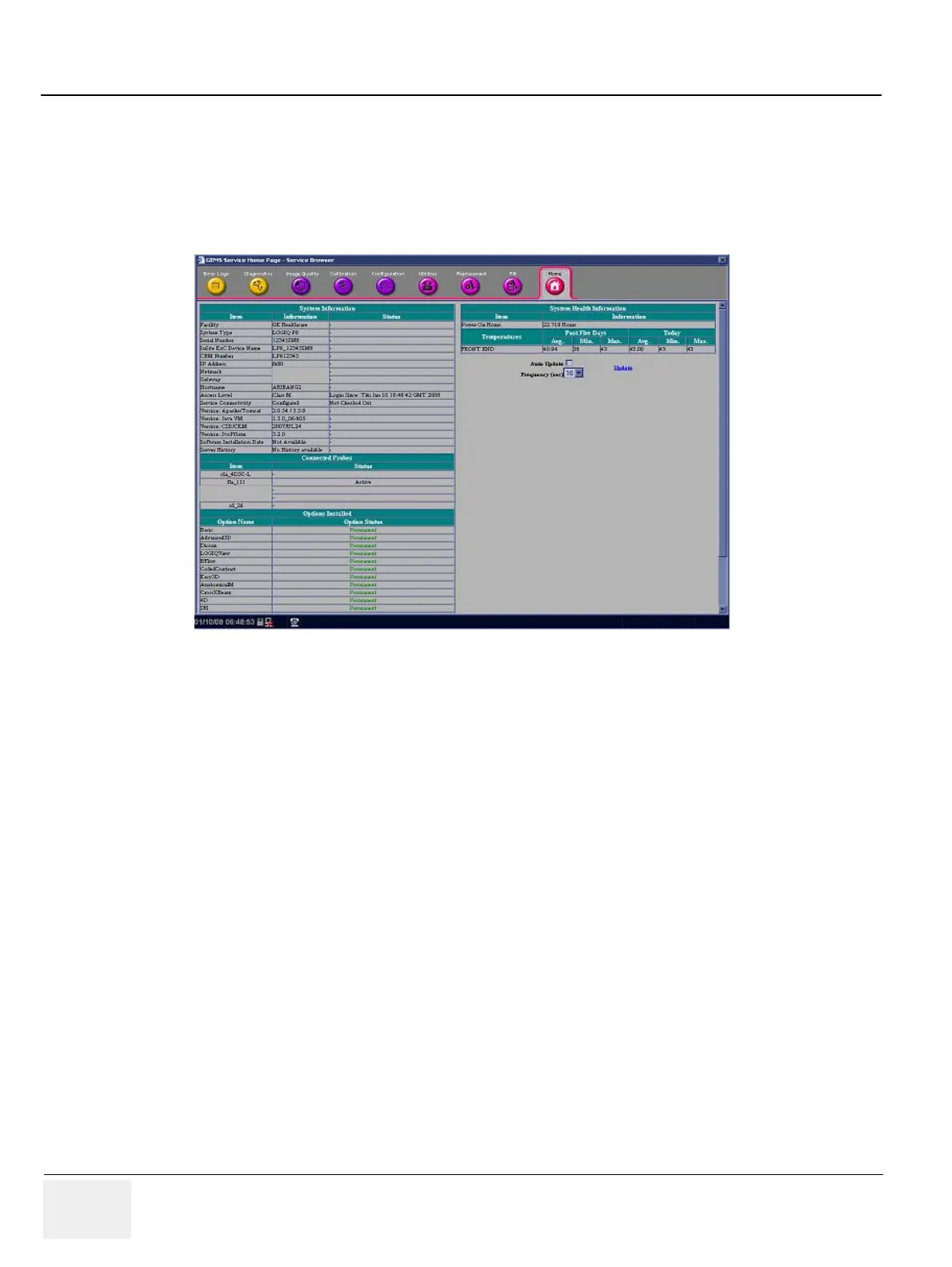

Figure 5-25 Service Home Page
