LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 8 - Page 8-163

8-7-7 BW printer Fixture Middle installation

1.) Install BW Printer on the top of the base bracket by screwing 4 screws.

2.) Unscrew 2 existing screw from the middle cover.

3.) Place the BW printer with base bracket on the middle cover and screw 2 screws to fix it.

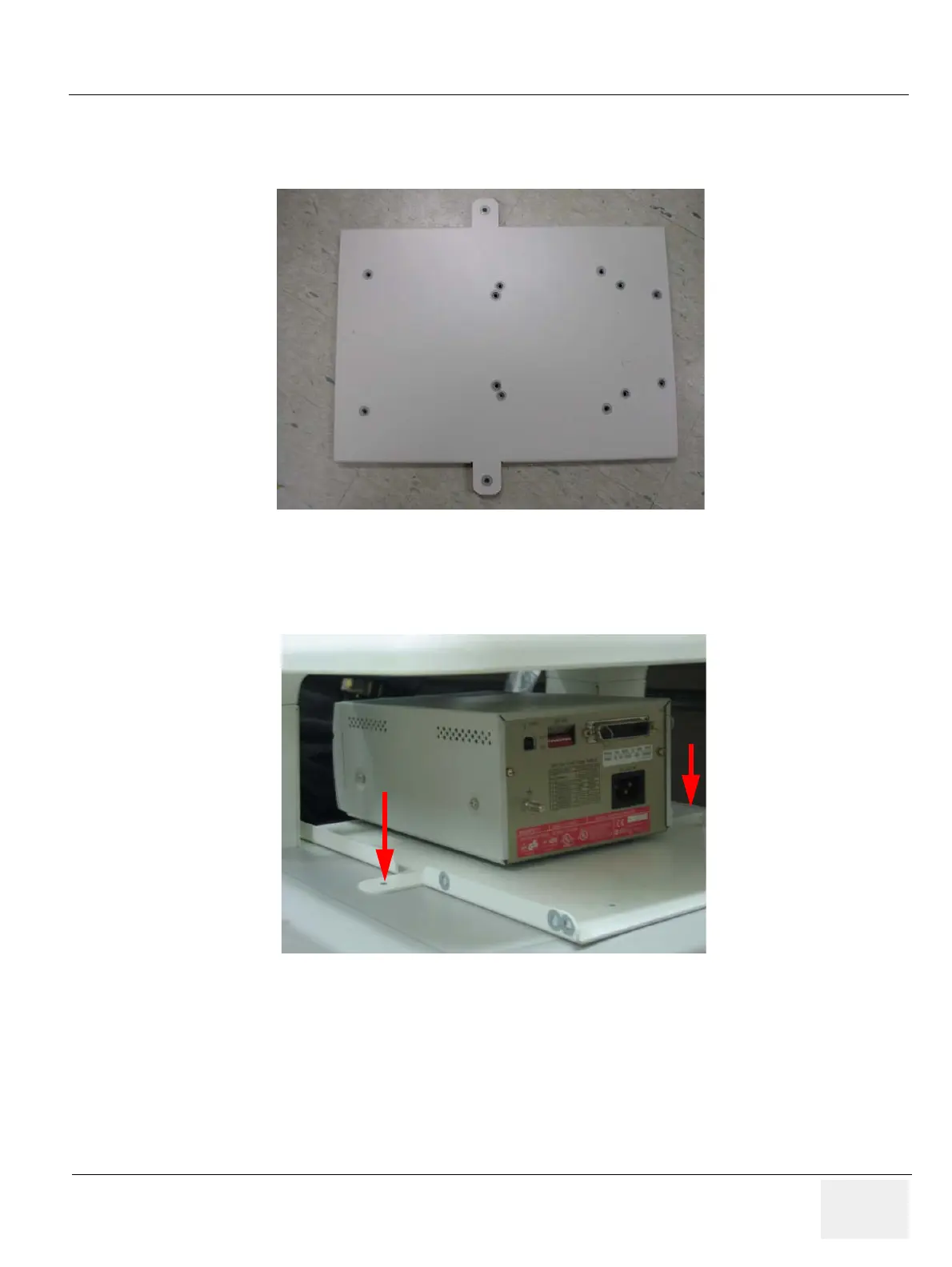

Figure 8-248 BW Printer Fixture Middle installation

Figure 8-249 BW Printer Fixture Middle installation

base bracket
