LOGIQ™ P6/P6 PRO SERVICE MANUAL
Page 8-132 Section 8-4 - Software Installation
8-4-4-5 Setting the VCR (if necessary)
1.) Select Utility > System > Peripheral tab.
2.) Under Video Settings, PAL or NTSC.
3.) Under VCR, select Composite or S-Video.
4.) Under VCR, select Panasonic LQ-MD800 or Mitsubishi MD3000, as appropriate.
5.) Click on Save.
6.) Shut down the scanner, then restart the scanner.
7.) Verify that the VCR can be properly operated.
8.) Perform the following functional tests. If all are successful, include the debrief script provided below.

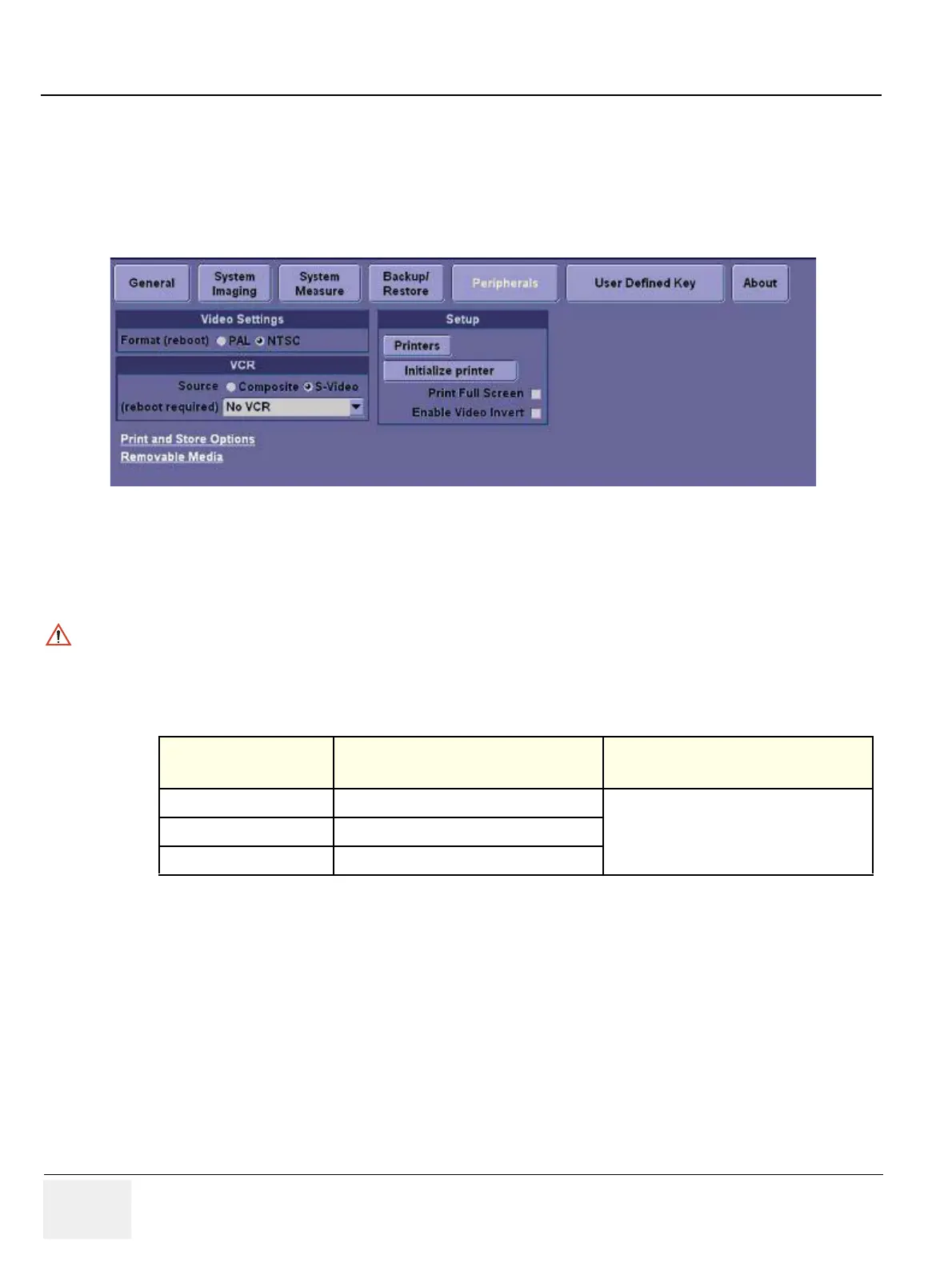

Figure 8-197 Utility > System > Peripheral
NOTICE
Be sure to connect the converter and cable before booting up the system. Otherwise the LOGIQ™ P6/
P6 Pro system does not recognize the peripheral devices
Table 8-52 Functional Tests
Service Manual
Section
Functional Test / Diagnostic Test Debrief Script
Section 4-3-1
Power On/Boot Up
“Service Manual, Direction
5394152, Rev 1+, Section 8-4-4. Equipment
passed all required tests and is ready for use. “
Section 4-3-2
Power Off / Shutdown
Section 4-5
Peripheral Checks
