LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 8-156 Section 8-7 - Mechanical Option Installation instruction

8-7-3 BT11 BW Printer Option Installation

1.) This section describes the installation procedure of the BW Printer option.

2.) Assemble the BW PRINTER to BW PRINTER FIX BRKT with screwing 4 screws (2306562, FH

M3X6).

3.) Assemble the BT11 BW PRINTER ASSY to SYSTEM using 2 SCREWS (5176744, BH M4X20).

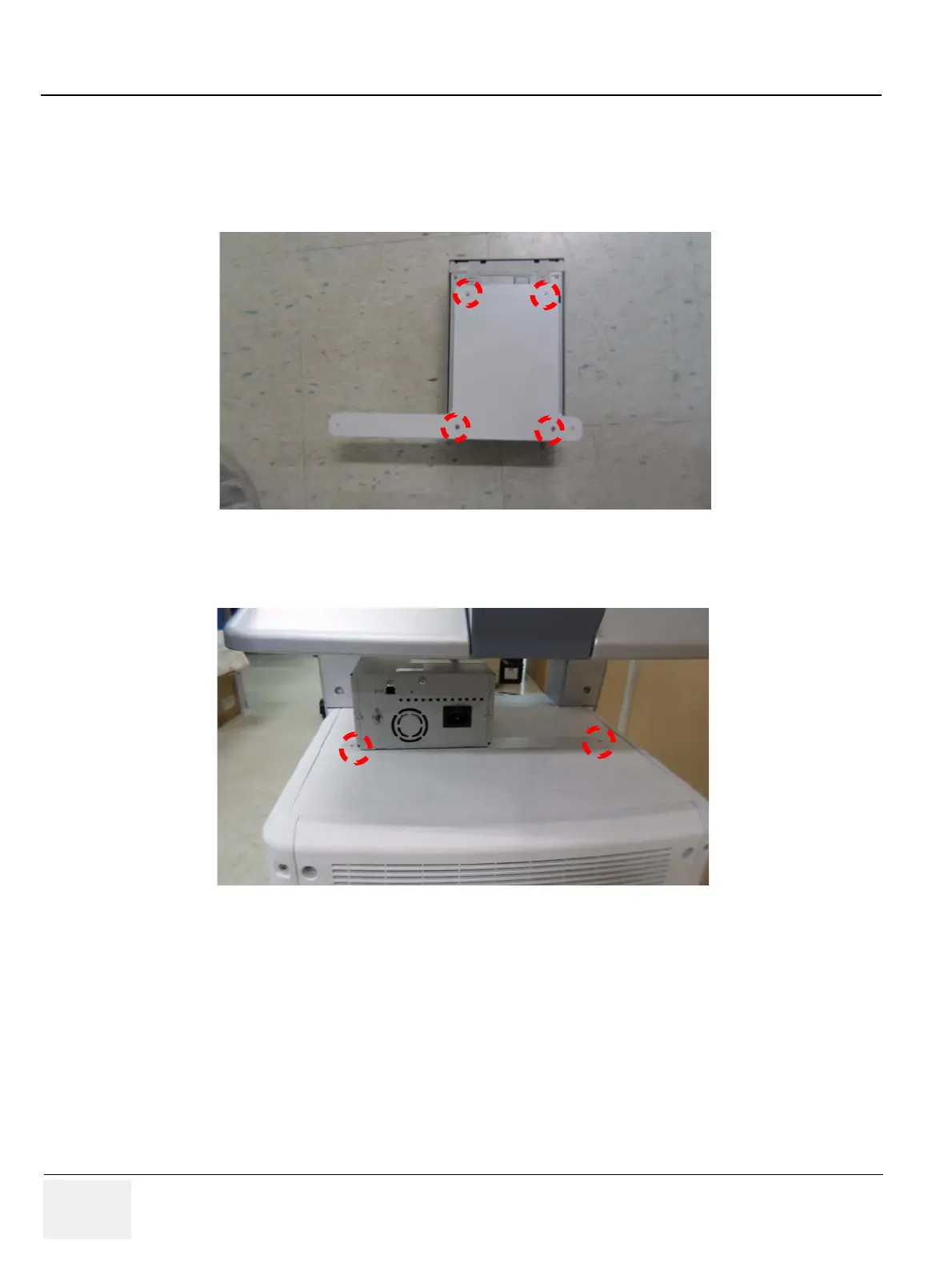

Figure 8-234 BT11 BW PRINTER Option Installation

Figure 8-235 BT11 BW PRINTER Option Installation
