LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 8 - Page 8-157

8-7-3 BT11 BW Printer Option Installation (cont’d)

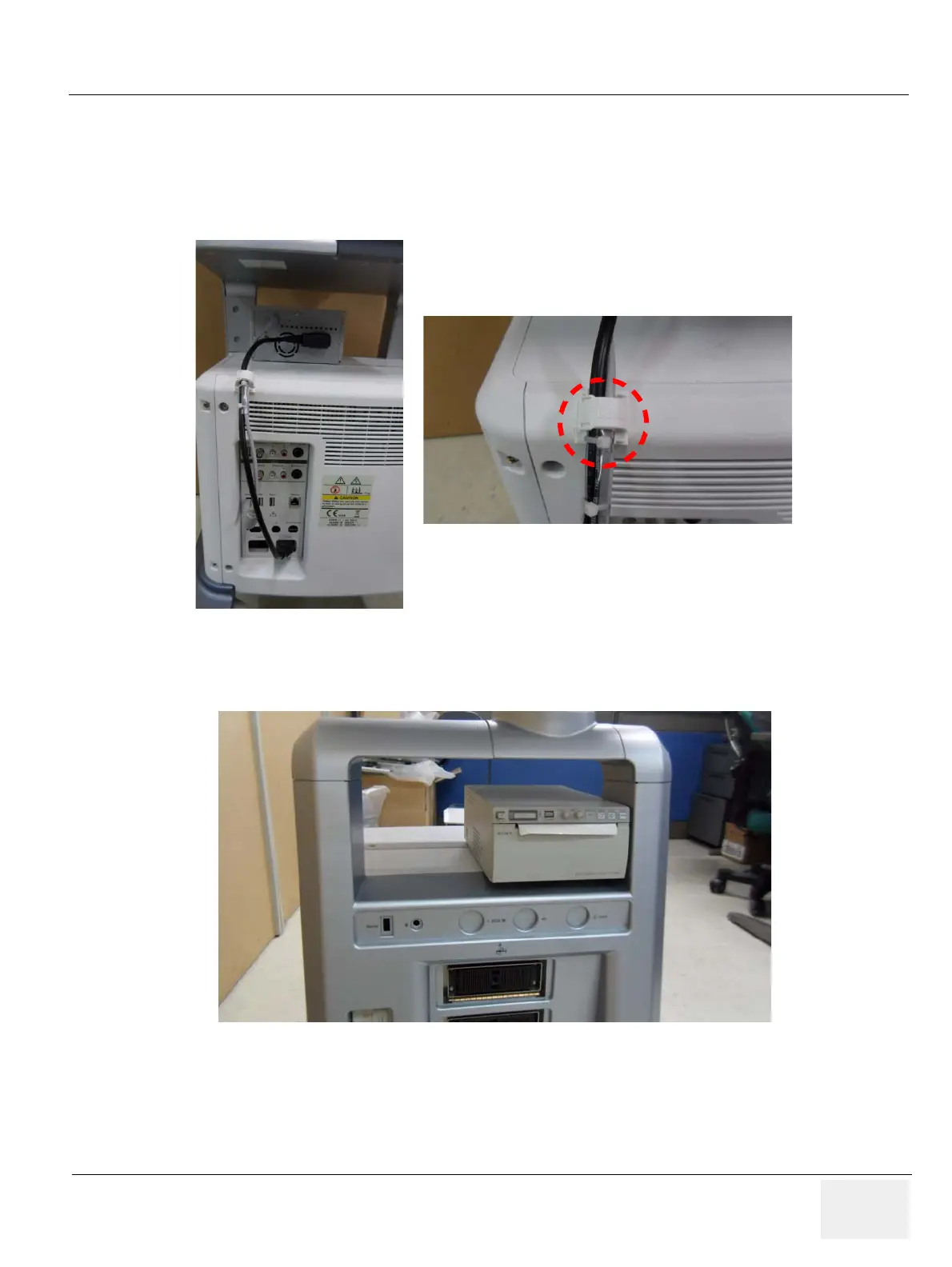

4.) Connect the PRT CABLE ASSY 3 (5168835-2) between BW PRINTER and SYSTEM REAR

PANEL.

Attach the CABLE MOUNT (5399222) on the REAR COVER and fix the cable as the picture below.

Finishe

d feature of BW PRINTER option.

Figure 8-236 BT11 BW PRINTER Option Installation

Figure 8-237 BT11 BW PRINTER Option Installation
