LOGIQ™ P6/P6 PRO SERVICE MANUAL
Chapter 4 - Page 4-5
4-3-3 System Features
4-3-3-1 Control Panel for LOGIQ™ P6/P6 Pro
1.) Power ON/OFF switch
2.) Patient Key
3.) Alpha Numeric key
4.) TGC
5.) Track Ball
6.) Navigation key
7.) User Define Key
8.) Function Select key
9.) Gain Knob
10.)Freeze Key

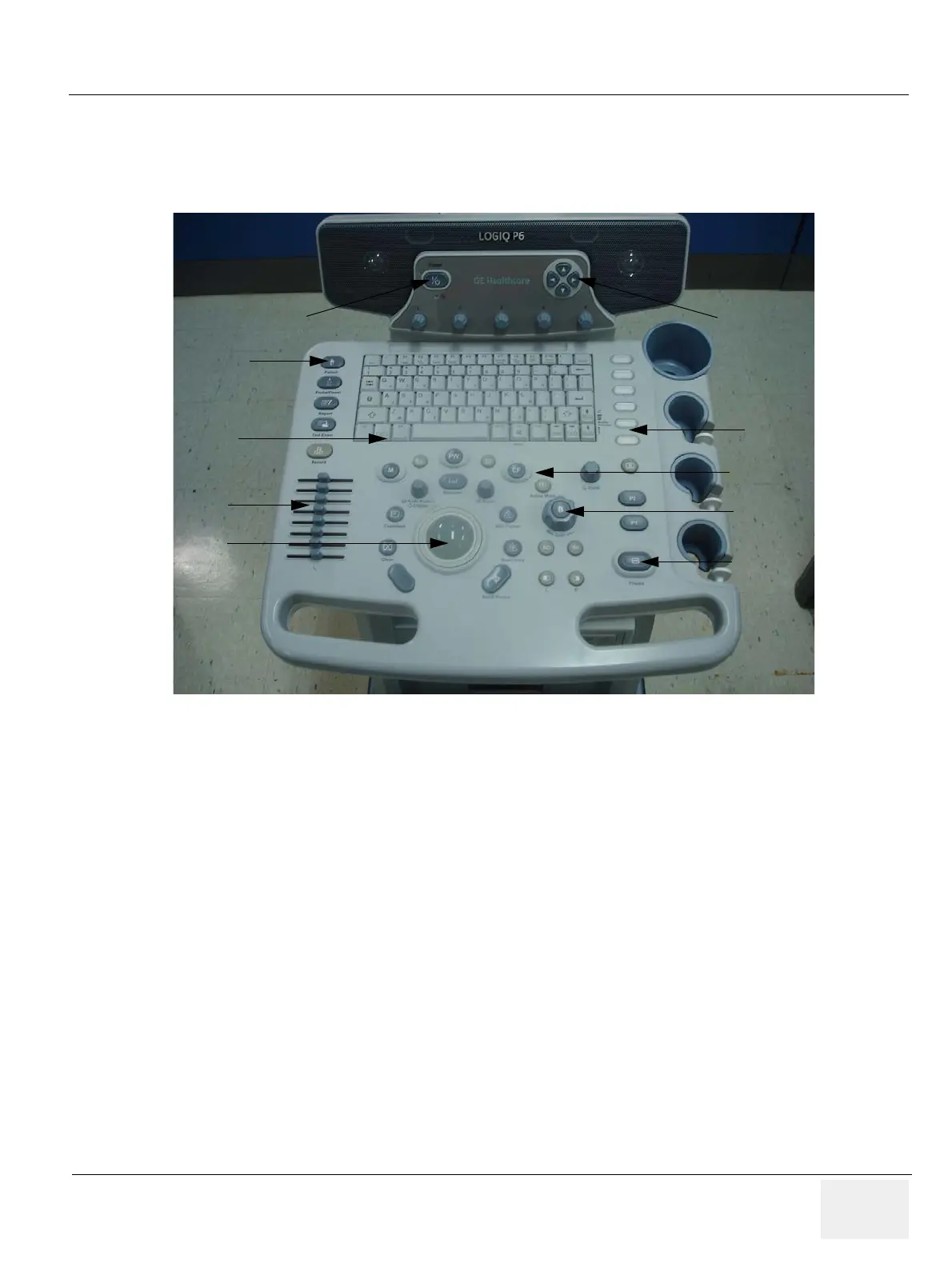

Figure 4-4 Control Panel Tour LOGIQ™ P6/P6 Pro
1
2
4
5
3
10
9
8
7
6

GE LOGIQ P6 Series Specifications

General

Power Supply	100-240 VAC, 50/60 Hz
Imaging Modes	B-Mode, M-Mode, Color Doppler, Power Doppler
Applications	Vascular, Musculoskeletal
Operating Temperature	10°C to 40°C
Display	15-inch LCD
Relative Humidity	20% to 80% (non-condensing)
