LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 8 - Page 8-179

8-7-13-2 Bracket Installation

1.) Unscrew 2 existing screws from the top cover.

2.) Install Fixture Top bracket on the top cover by screwing 2 screws(2306565, BH M4x16 WHT).

3.) Install VCR recorder to the base bracket by screwing 4 screws(2159634, BH M4x10 WHT).

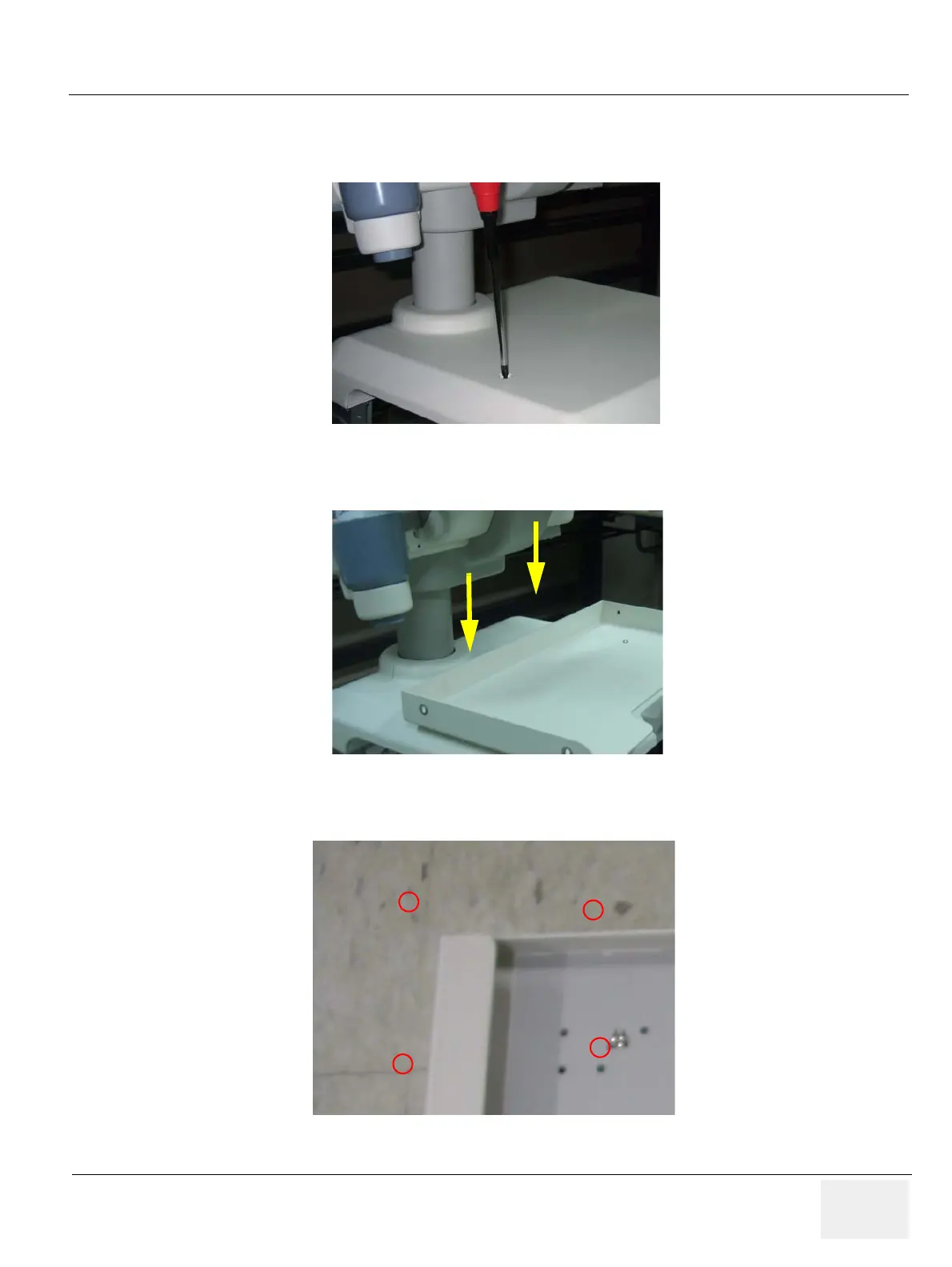

Figure 8-286 Printer VCR DVD Fixture Top installation

Figure

8-287 Printer VCR DVD Fixture Top installation

Figure 8-288 Printer VCR DVD Fixture Top installation
