DIRECTION 5394152, Revision 5
LOGIQ™ P6/P6 PRO SERVICE MANUAL
Chapter 8 - Page 8-135
8-4-4-8 Print Key Assignment and Checkouts necessary)
1.) Select Utility-> Connectivity-> Button tap.
2.) Choose the desired print button (for example, Print1) under Physical Print Button.
3.) Select Standard Print, and press > >Standard Print is added under printflow View.
4.) Press the print key just configured.
The screenshot prints to the destination printer.

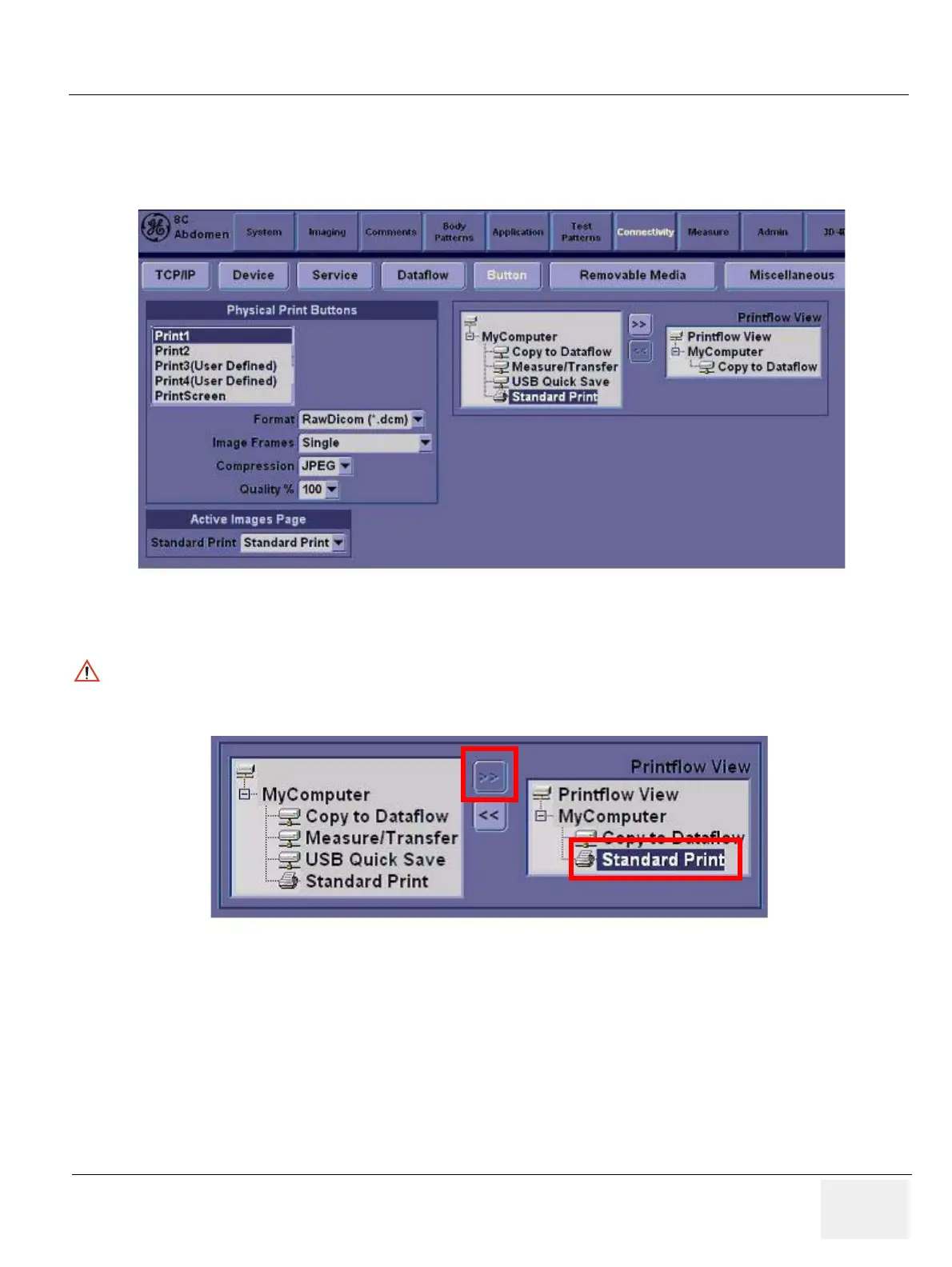

Figure 8-203 Physical Print Button
NOTICE
Press << to delete a existing Standard Print.
Figure 8-204 Standard Print

GE LOGIQ P6 Series Specifications

General

Power Supply	100-240 VAC, 50/60 Hz
Imaging Modes	B-Mode, M-Mode, Color Doppler, Power Doppler
Applications	Vascular, Musculoskeletal
Operating Temperature	10°C to 40°C
Display	15-inch LCD
Relative Humidity	20% to 80% (non-condensing)
