LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 5-20 Section 5-1 - Overview

5-6-3 Peripherals connection

A DVD recorder, a Black & White Video Printer and a Color Printer may be installed in system as

onboard. These devices are connected to rear (P6 ARP II) or front side (bottom of keyboard). LOGIQ™

P6/P6 Pro does not support analog printer.

5-6-3-1 BW and Color printers

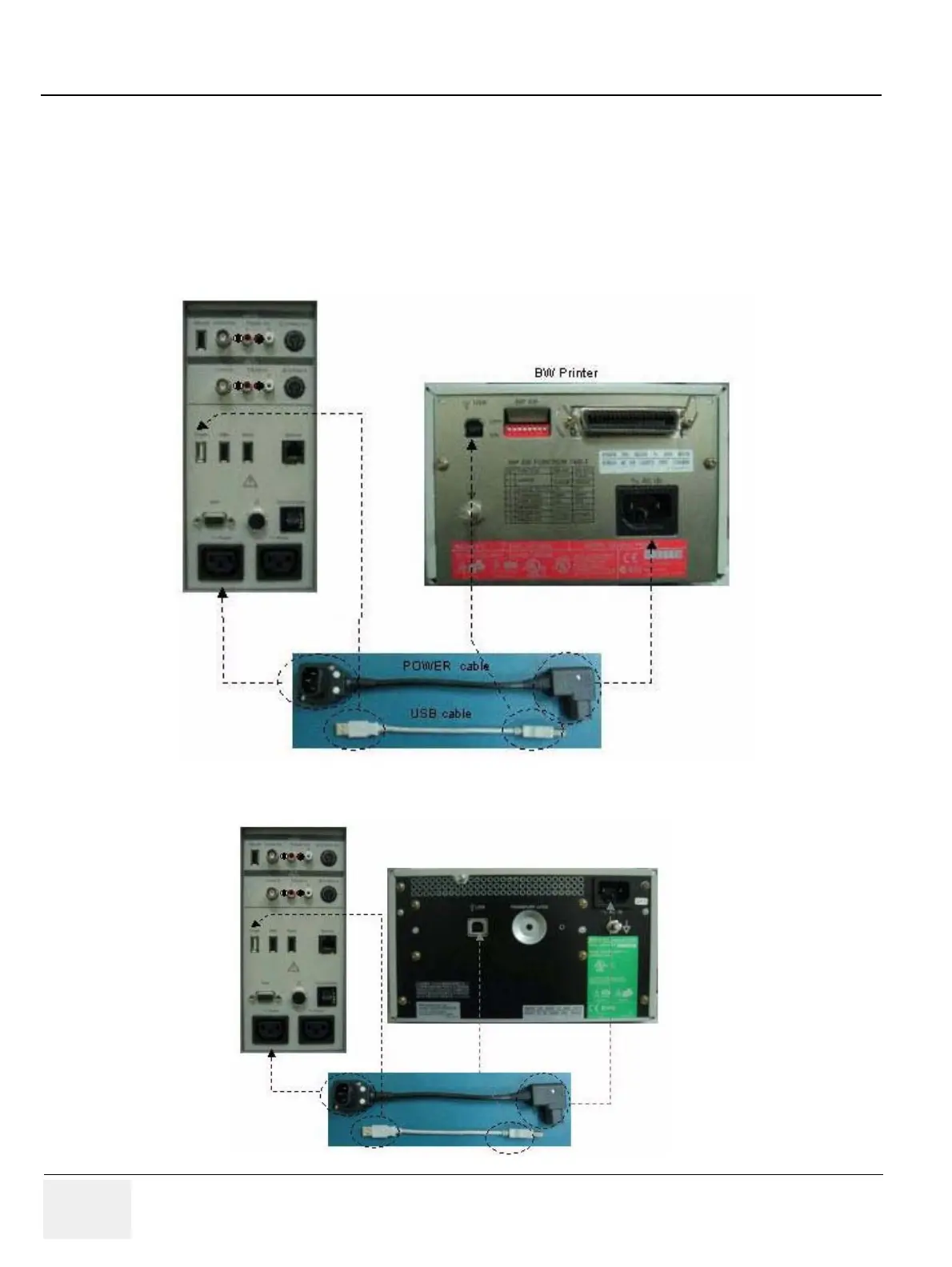

Connect the Power and USB cable as shown in Figure 5-18..

Figure 5-18 Digital BW Printer

Figure 5-19 Digital Color Printer
