GE LOGIQ P6 Series User Manual

GE HEALTHCARE
DIRECTION 5394152, Revision 5
LOGIQ™ P6/P6 PRO SERVICE MANUAL
Chapter 8 - Page 8-59
8-2-22 Neck Rear
8-2-22-1 Tools
• Common Phillips screwdrivers
8-2-22-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-22-3 Removal procedure
1.) Remove 2 rubber caps (1-2).
2.) Unscrew 2 screws and remove the Neck Rear.

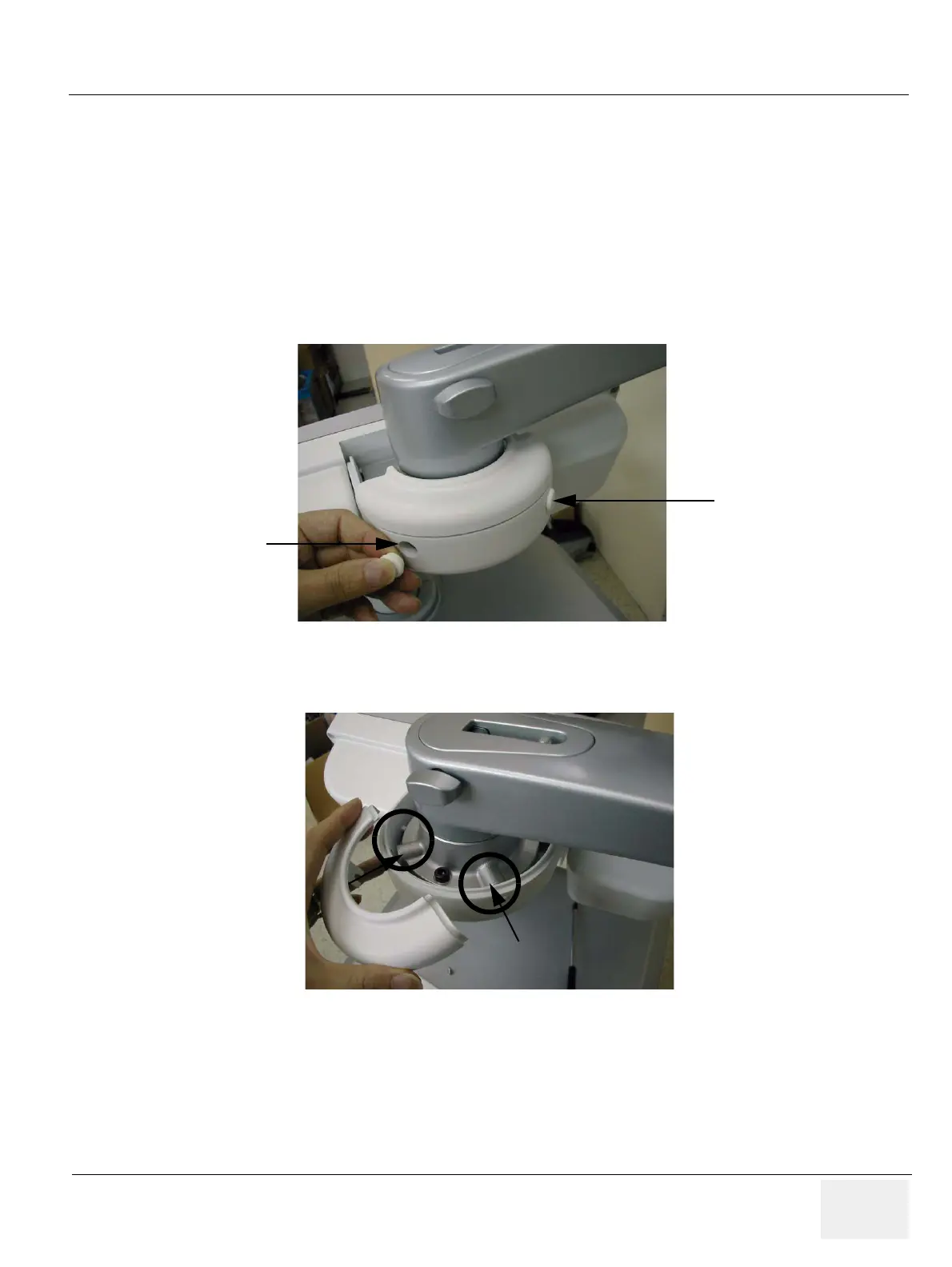

Figure 8-98 rubber cap of neck rear cover
Figure 8-99 Open neck rear cover
(2)
(1)

GE LOGIQ P6 Series Specifications

General

Power Supply	100-240 VAC, 50/60 Hz
Imaging Modes	B-Mode, M-Mode, Color Doppler, Power Doppler
Applications	Vascular, Musculoskeletal
Operating Temperature	10°C to 40°C
Display	15-inch LCD
Relative Humidity	20% to 80% (non-condensing)
