GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 5-32 Section 5-1 - Overview

5-7-9-1-3 Proxy Configuration.

If Pro

xy is used in the site, it should be filled proper Proxy Server Address and Proxy Server Port.

And Press “Submit Changes” button to finish check out process.

5-7-10 Utilities

The Utilities page contains several miscellaneous tools.

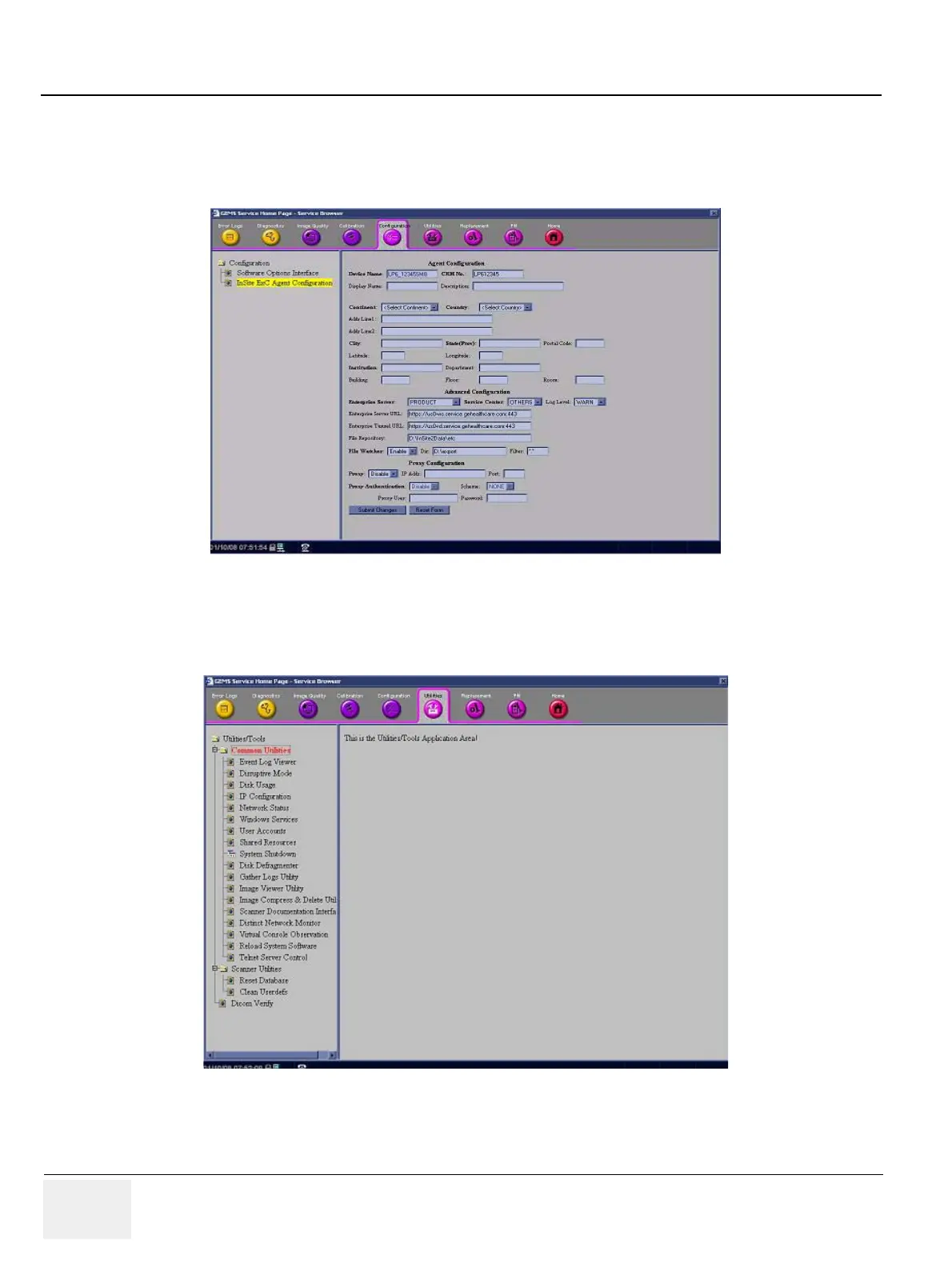

Figure 5-32 Proxy Configuration

Figure 5-33 GE Service Utilities Page
