GE LOGIQ P6 Series User Manual

GE HEALTHCARE
DIRECTION 5394152, Revision 5
LOGIQ™ P6/P6 PRO SERVICE MANUAL
Chapter 4 - Page 4-33
4-8-3 TGC key assy/TGC Knob set, Sub keyboard encoder Knob Set, keycap set, Main
keyboard Encoder Knob set Function Validation Procedure
• Check if the each button operates properly.
• Check if encoder knobs are in the center.
• Check if the keycap set can not be removed easily.

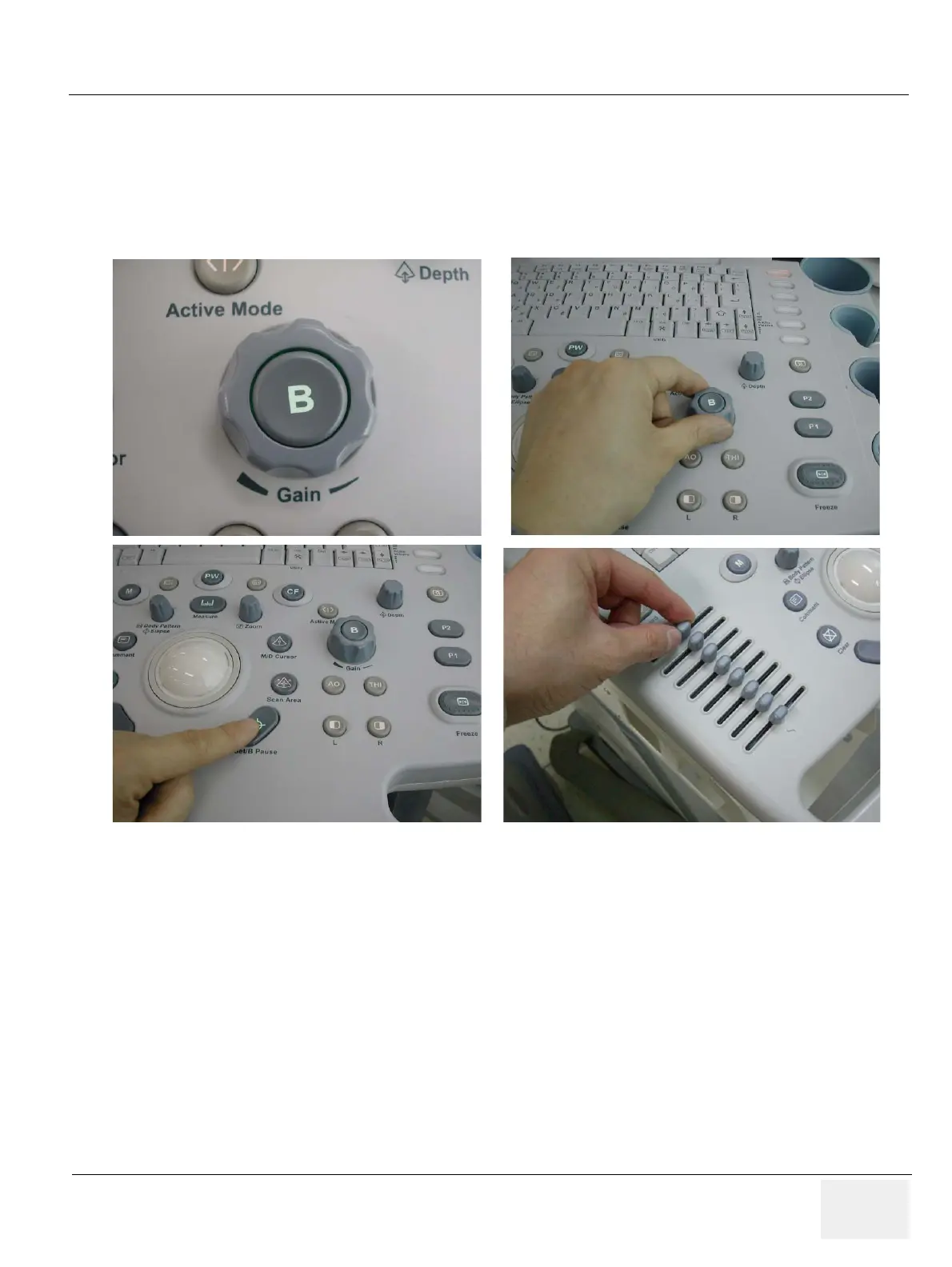

Figure 4-31 Keycap set, Main keyboard encoder knob set

GE LOGIQ P6 Series Specifications

General

Power Supply	100-240 VAC, 50/60 Hz
Imaging Modes	B-Mode, M-Mode, Color Doppler, Power Doppler
Applications	Vascular, Musculoskeletal
Operating Temperature	10°C to 40°C
Display	15-inch LCD
Relative Humidity	20% to 80% (non-condensing)
