GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 7-8 Section 7-1 - Overview

Section 7-4

Diagnostics

As described in "Components and Functions (Theory)" on page 5-1, the service platform uses a web-

based user interface (UI) to provide access to common service components.

The Diagnostic home page displays a listing of test categories consisting of Common Diagnostics, and

LOGIQ™ P6/P6 Pro Diagnostics. Expand the desired main category to select groups or individual tests.

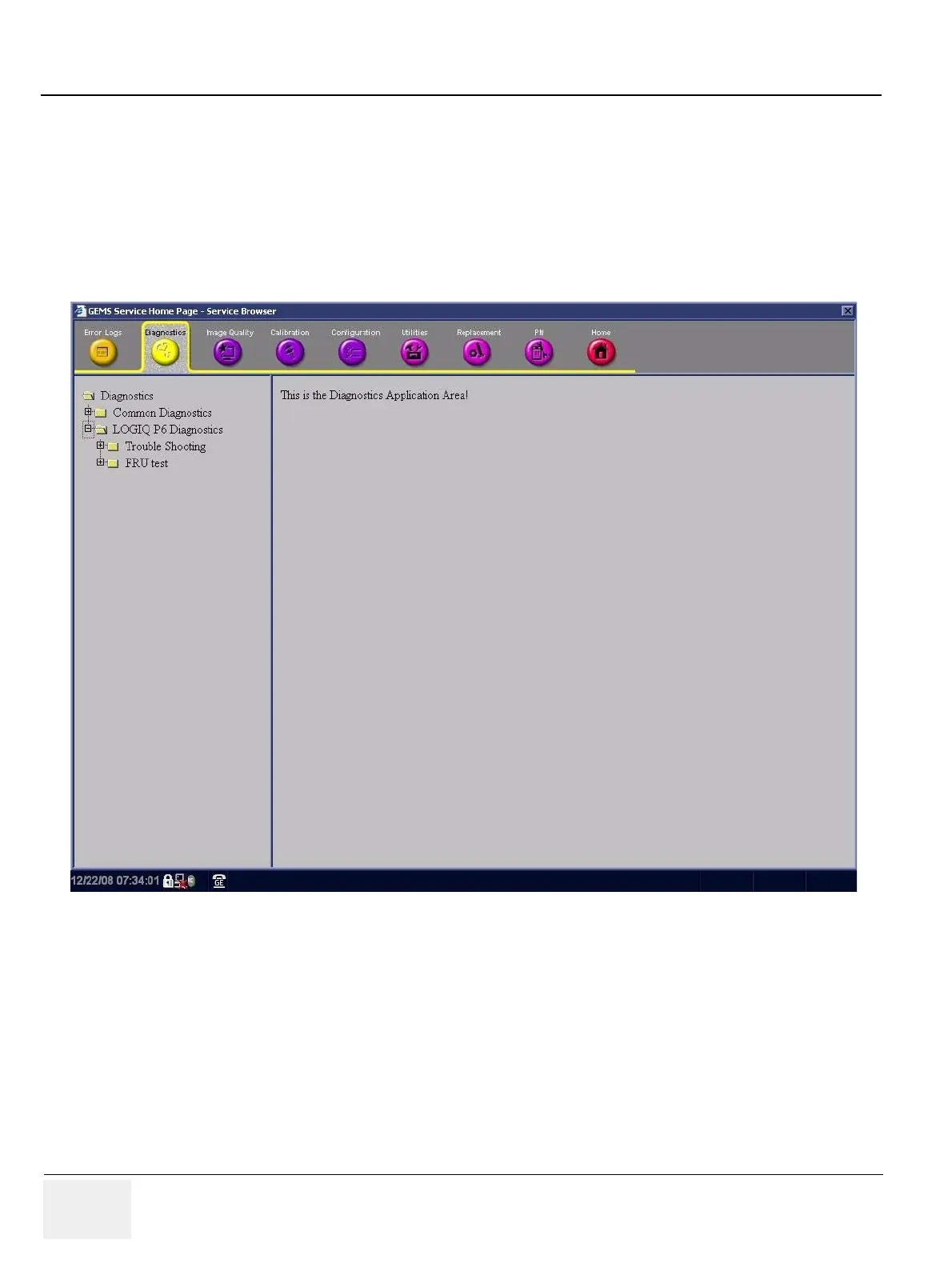

Figure 7-6 Global Service User Interface Diagnostic Screen
