LOGIQ™ P6/P6 PRO SERVICE MANUAL
Chapter 8 - Page 8-7
8-2-2 OSD button
8-2-2-1 Tools
•L wrench
• Phillips screw driver
8-2-2-2 Preparation
Shut down the system and switch off the main breaker
8-2-2-3 17" LCDMON OSD Key Assy Replace Procedure

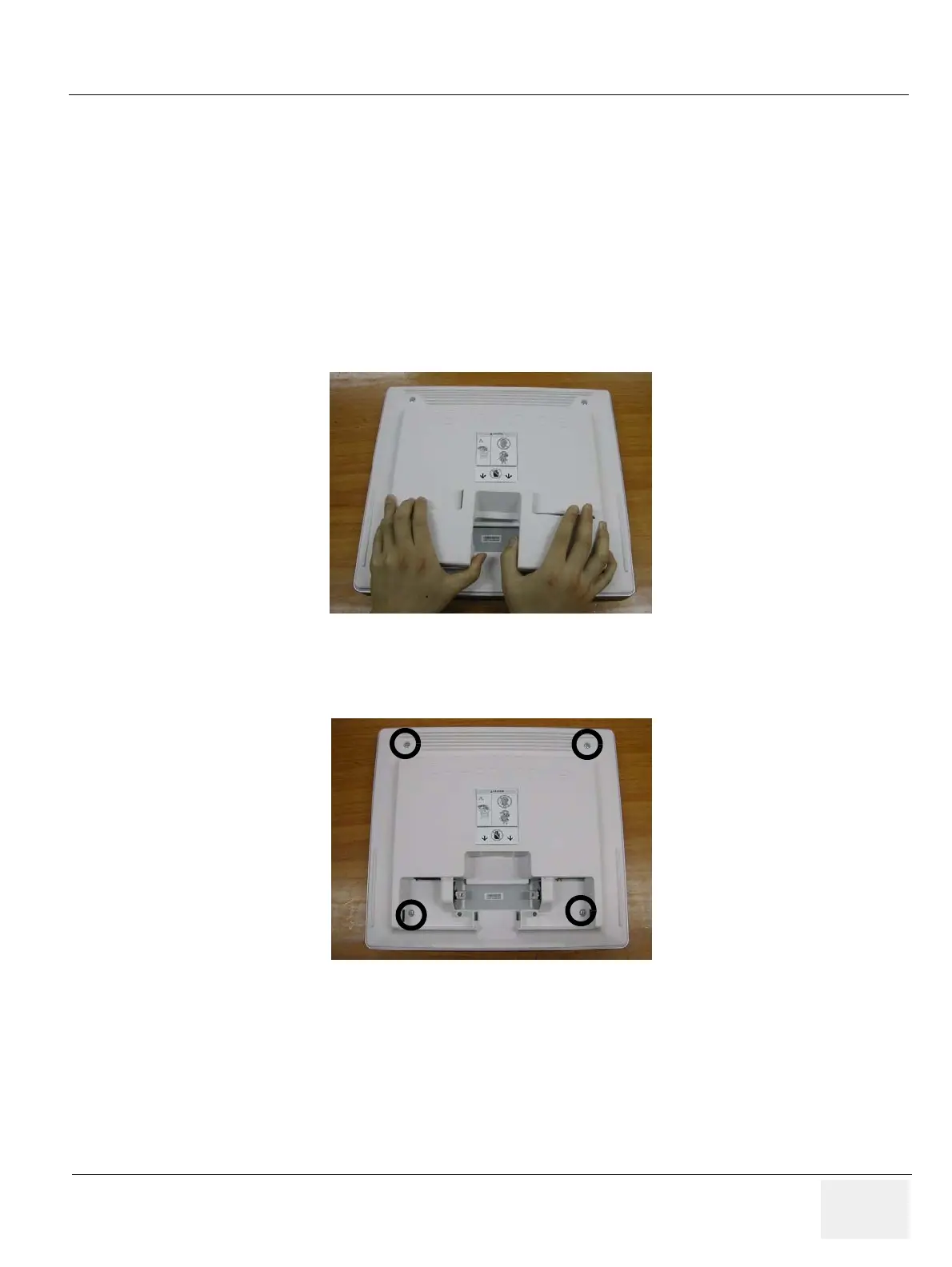

1.) Remove the LCD Cable cover.
2.) Unscrew 4 screws to remove the rear cover.
Figure 8-9 Removing the LCD Cable cover
Figure 8-10 Removing the rear cover
