GE HEALTHCARE
DIRECTION 5394152, Revision 5
LOGIQ™ P6/P6 PRO SERVICE MANUAL
Page 8-66 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-26 DTRX64II Assy
8-2-26-1 Tools
Common Phillips screwdrivers
8-2-26-2 Preparations
Shut down the system and switch off the main breaker.
8-2-26-3 Removal procedure
1.) Remove the Side Right Cover. Refer to the 8-2-14 "Right or Left Side Cover" on page 8-48.
2.) Remove the EMI Cover R. Refer to the 8-2-24 "EMI Cover L and R" on page 8-63.
3.) Unscrew 2 screws (1-2) and eject the PCB.
4.) The DTRX64II Assys are settled in #1 and #2 slots in nest box.
5.) Pull the DTRX64II assy(s) out.

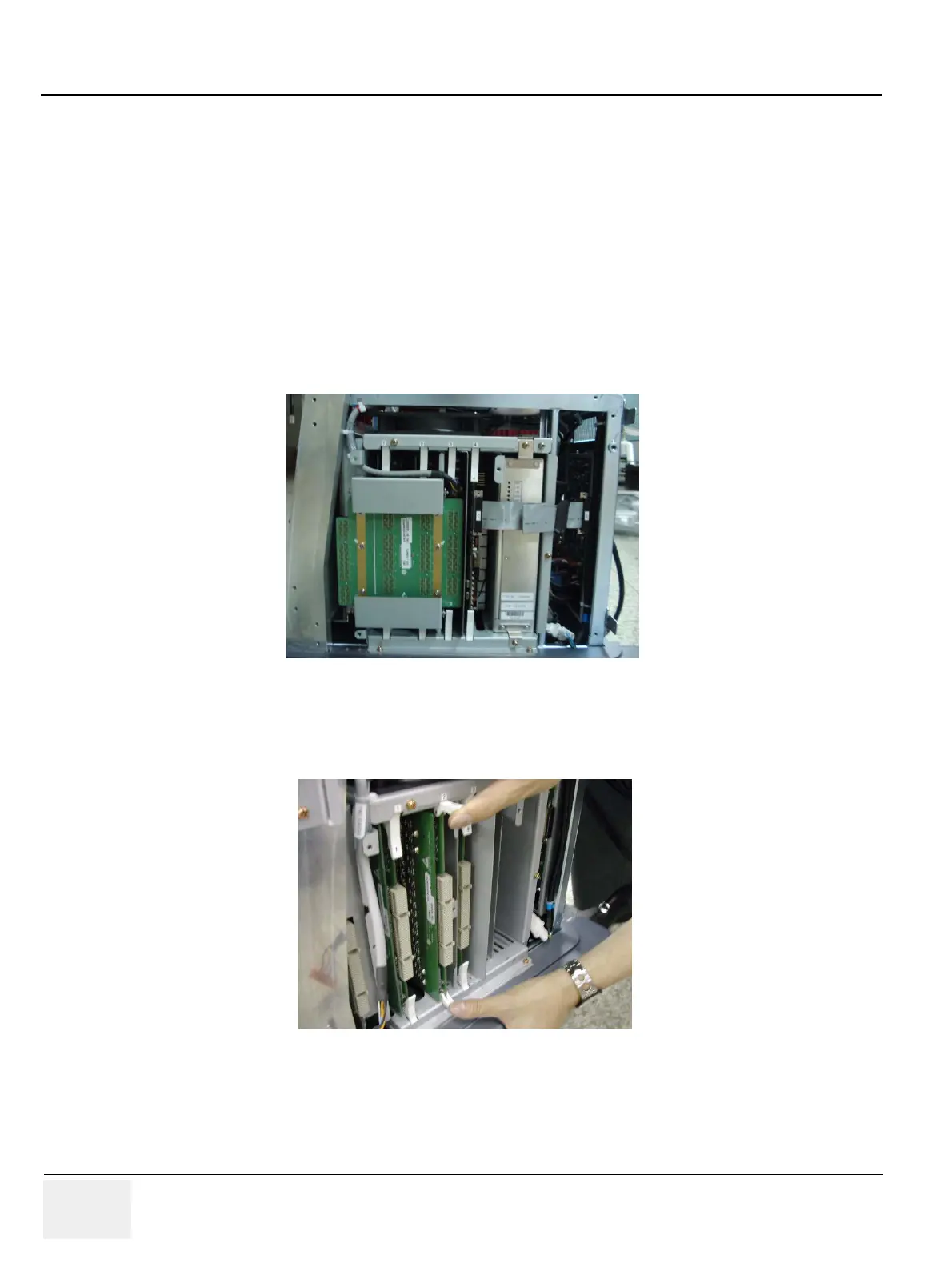

Figure 8-105 Eject RFC Assy
Figure 8-106 DTRX64II Assy
