LOGIQ™ P6/P6 PRO SERVICE MANUAL
Chapter 8 - Page 8-37
8-2-6 Main Keyboard Assy
8-2-6-1 Tools
• Common Phillips screwdrivers
8-2-6-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-6-3 Removal procedure
1.) Remove the 3 Probe holders & Cup holder from the keyboard.
2.) Unscrew 4 screws from the bottom front of the keyboard.

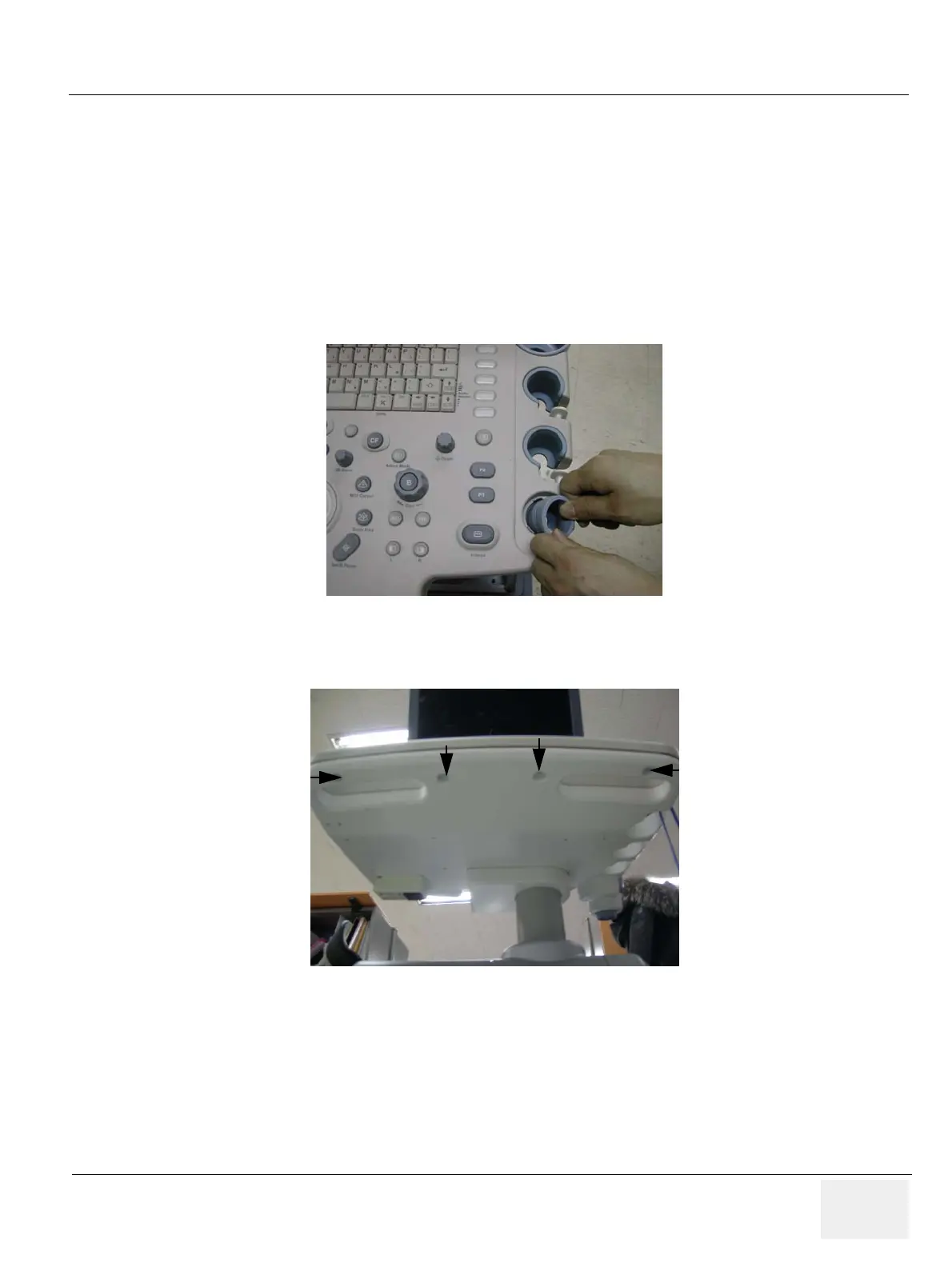

Figure 8-70 Removing holders
Figure 8-71 Unscrews 4 screws
(1) (4)
(2)
(3)
