Page 5-30 Section 5-1 - Overview

5-7-7 Image Quality

Field is not yet populated.

The Image Quality page contains tools for troubleshooting image quality issues.

5-7-8 Calibration

Field is not yet populated.

The Calibration page contains the tools used to calibrate the system.

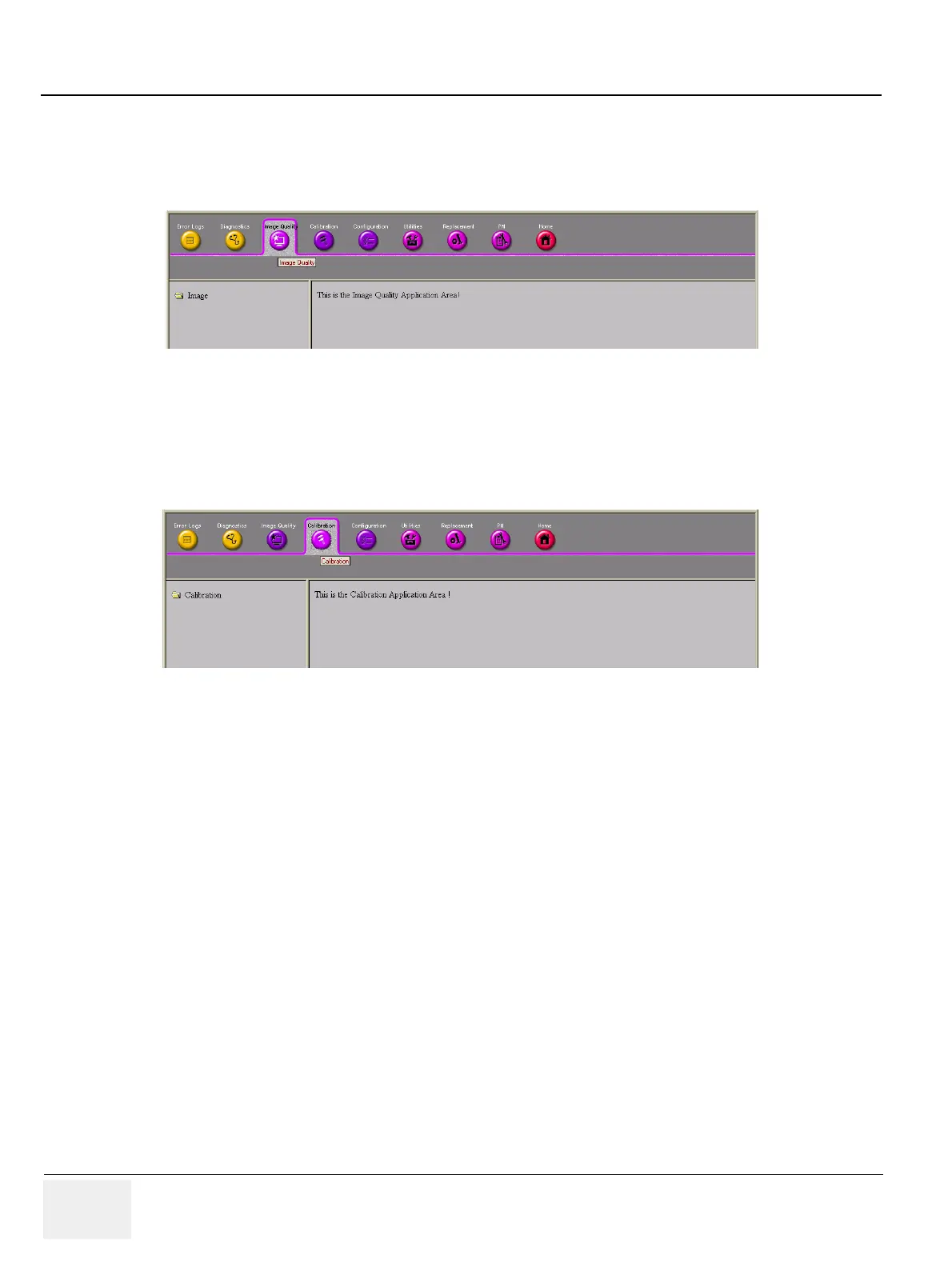

Figure 5-29 Image Quality Page

Figure 5-30 Calibration Page
