GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 8-174 Section 8-7 - Mechanical Option Installation instruction

8-7-12 Printer VCR DVD fixture Top installation - CP900 Printer

1.) Unscrew 2 existing screws from the top cover.

2.) Install Fixture VCR bot bracket on the top cover by screwing 2 screws(2306565, BH M4x16 WHT).

3.) Install color printer to the VCR top bracket by screwing 4 screws(5161586, M3x8 WHT).

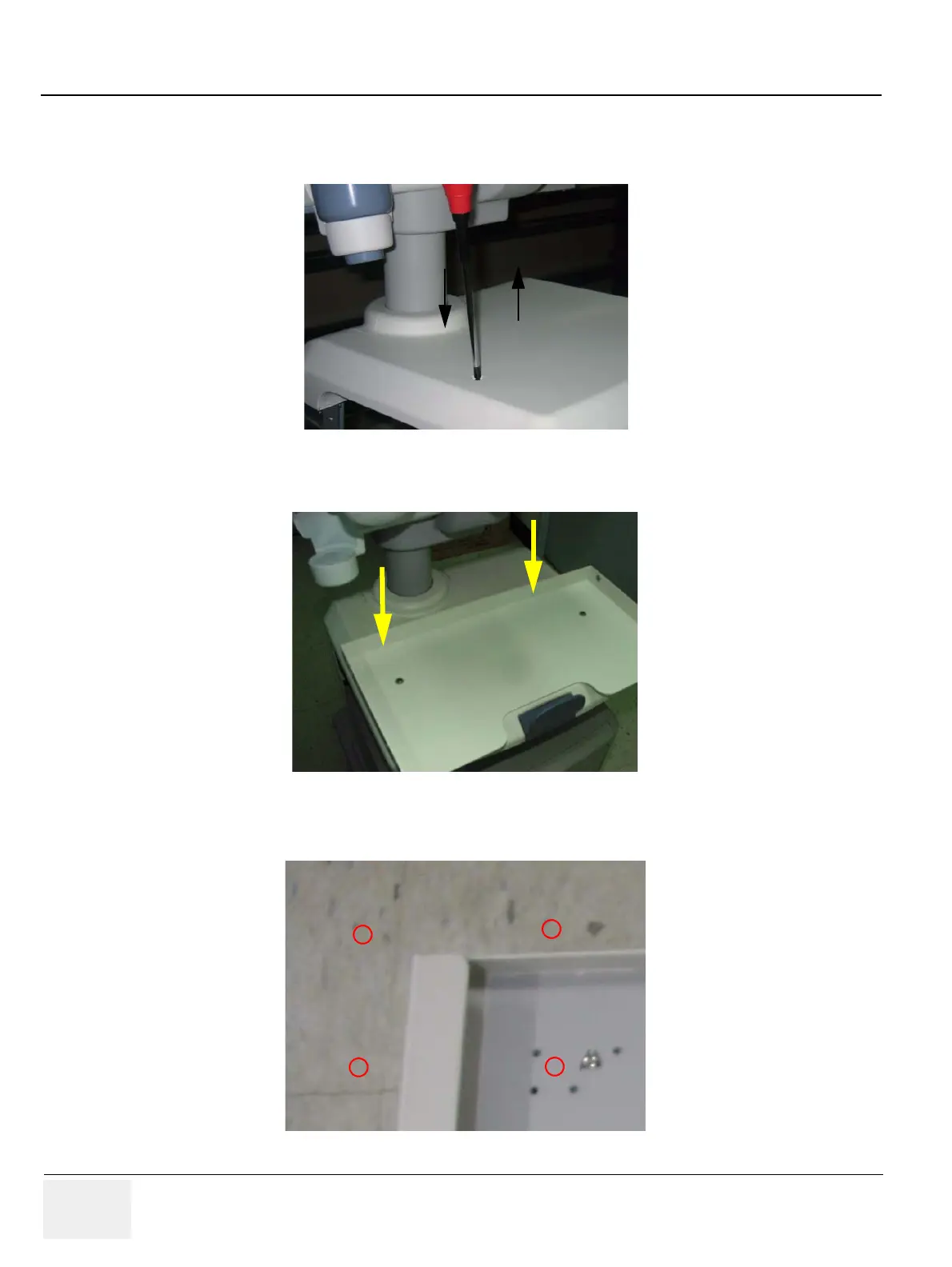

Figure 8-275 Printer VCR DVD Fixture Top installation

igure 8-276 Printer VCR DVD Fixture Top installation

Figure 8-277 Printer VCR DVD Fixture Top installation
