LOGIQ™ P6/P6 PRO SERVICE MANUAL
Page 8-82 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY
8-2-35 Rear Hook
8-2-35-1 Tools
• Common Phillips screwdrivers
8-2-35-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-35-3 Removal procedure
1.) Unscrew 2 screws (1-2) and remove Rear hook.
2.) Unscrew 2 screws (1-2) and remove.
3.) Perform the following functional tests. If all are successful, include the debrief script provided below.
8-2-35-4 Mounting Procedure
Install the new parts in the reverse order of removal.

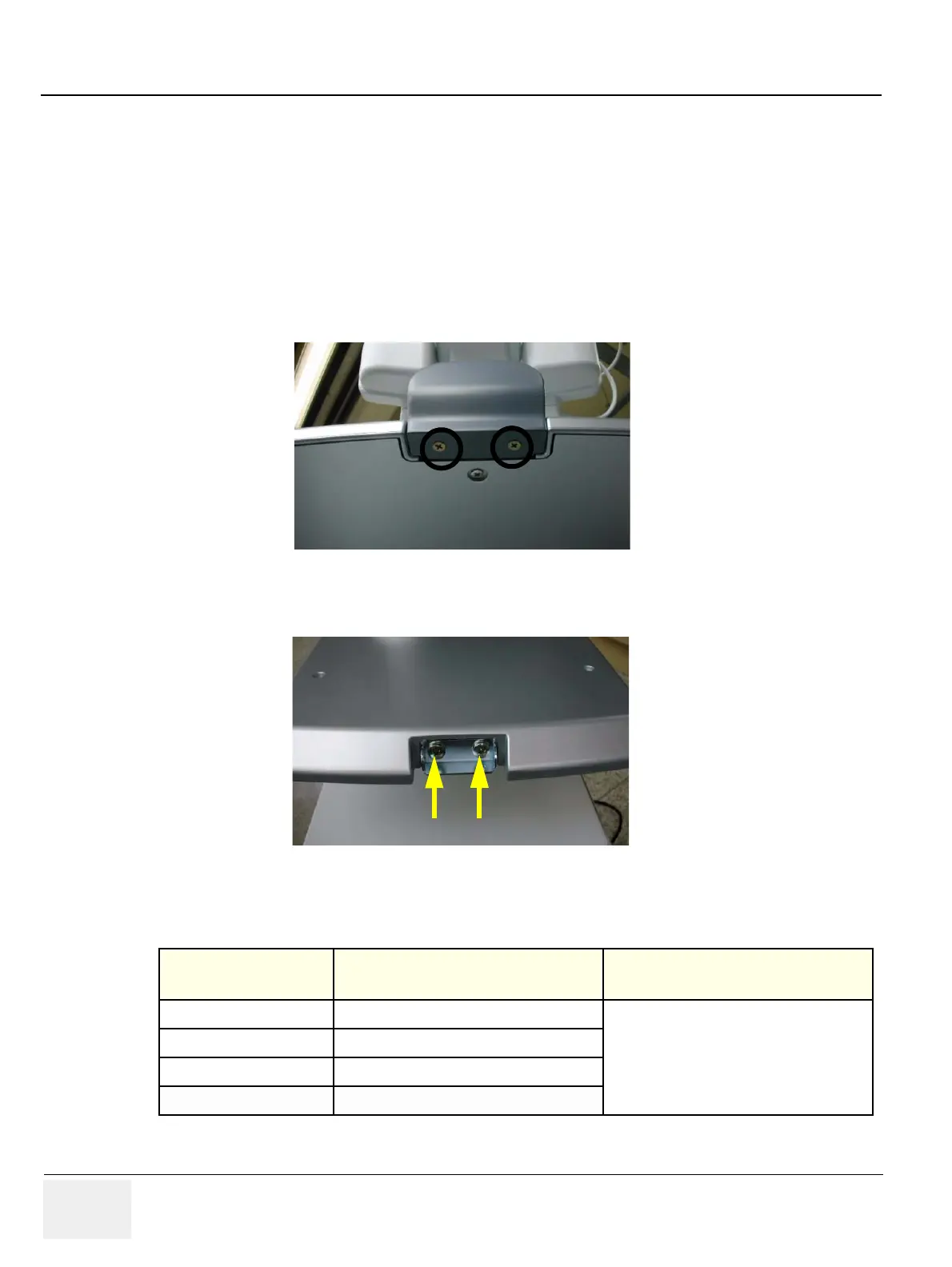

Figure 8-122 Screws on rear hook
Figure 8-123 Screws on the rear hook fix brkt
Table 8-36 Functional Tests
Service Manual
Section
Functional Test / Diagnostic Test Debrief Script
Section 4-3-1
Power On/Boot Up
“Service Manual, Direction
5394152, Rev 1+, Section 8-2-35. Equipment
passed all required tests and is ready for use. “
Section 4-3-2
Power Off / Shutdown
Section 4-8-1
Cover Parts Function Validation
Section 10-5-5
Physical Inspection

GE LOGIQ P6 Series Specifications

General

Power Supply	100-240 VAC, 50/60 Hz
Imaging Modes	B-Mode, M-Mode, Color Doppler, Power Doppler
Applications	Vascular, Musculoskeletal
Operating Temperature	10°C to 40°C
Display	15-inch LCD
Relative Humidity	20% to 80% (non-condensing)
