LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 8-134 Section 8-4 - Software Installation

8-4-4-7 Setting Printer Properties in Application Software (if necessary)

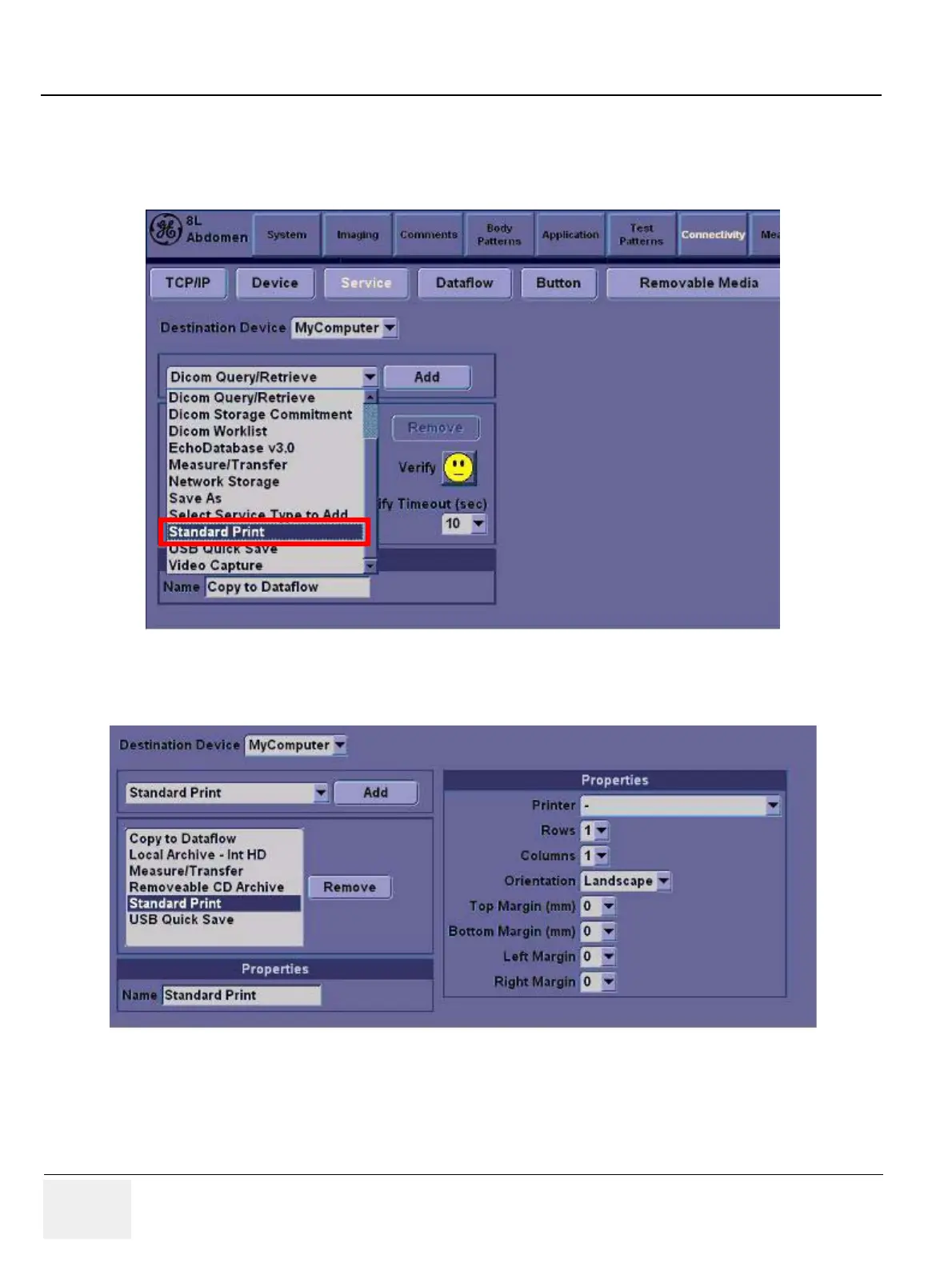

1.) Select Utility -> Connectivity -> Service tab

2.) Select Standard Printer, and Add

3.) Under Properties, select desired Printer, and Save.

Figure 8-201 Utility > Connectivity > Service

Figure 8-202 Select the Printer
