8-7-5 Cable Arm Hook installation
1.) Cable Arm Hook should be installed in prior to installing Probe Cable Hanger, or Endo Probe
Holder.
2.) Unscrew 1 existing screw from the rear side of the keyboard.
3.) Screw 2 screws to fix the Cable Arm hook. User longer screw provide on the upper hole, and use
existing screw removed in the step 2 on the Figure below.

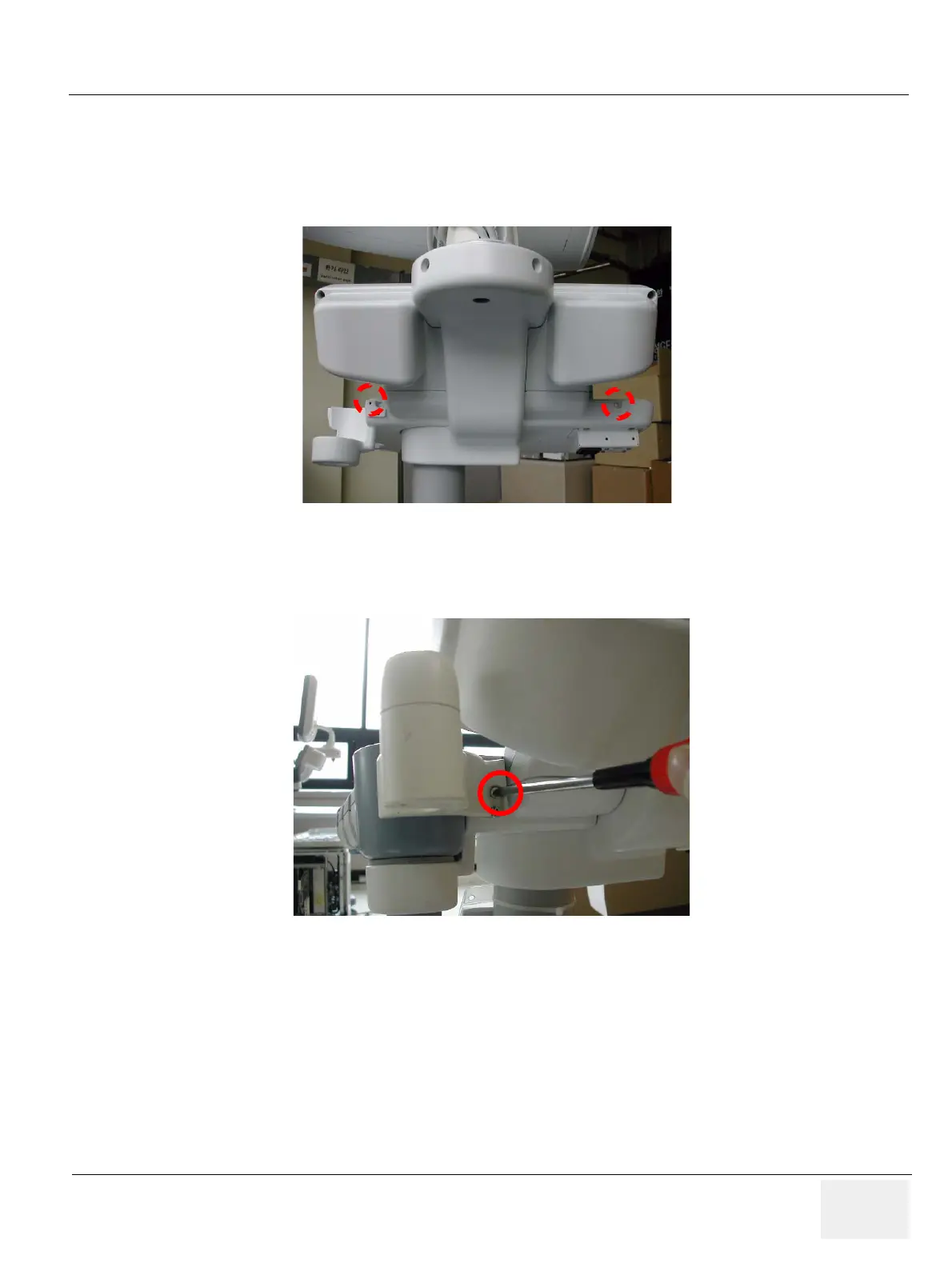

Figure 8-240 Cable Arm Hook installation
Figure 8-241 Cable Arm Hook installation
