LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 3 - Page 3-21

3-6-6 Setting VCR (Mitsubishi MD3000) USB Interface

1.) Turn off the Power of the VCR.

2.) Open the rear panel of the VCR.

3.) Set dip switches. Off 1~6 pins, On 7 pin, and Off 8 pin.

NOTE: 7 Pin ON = USB Interface, OFF = RS232C Interface.

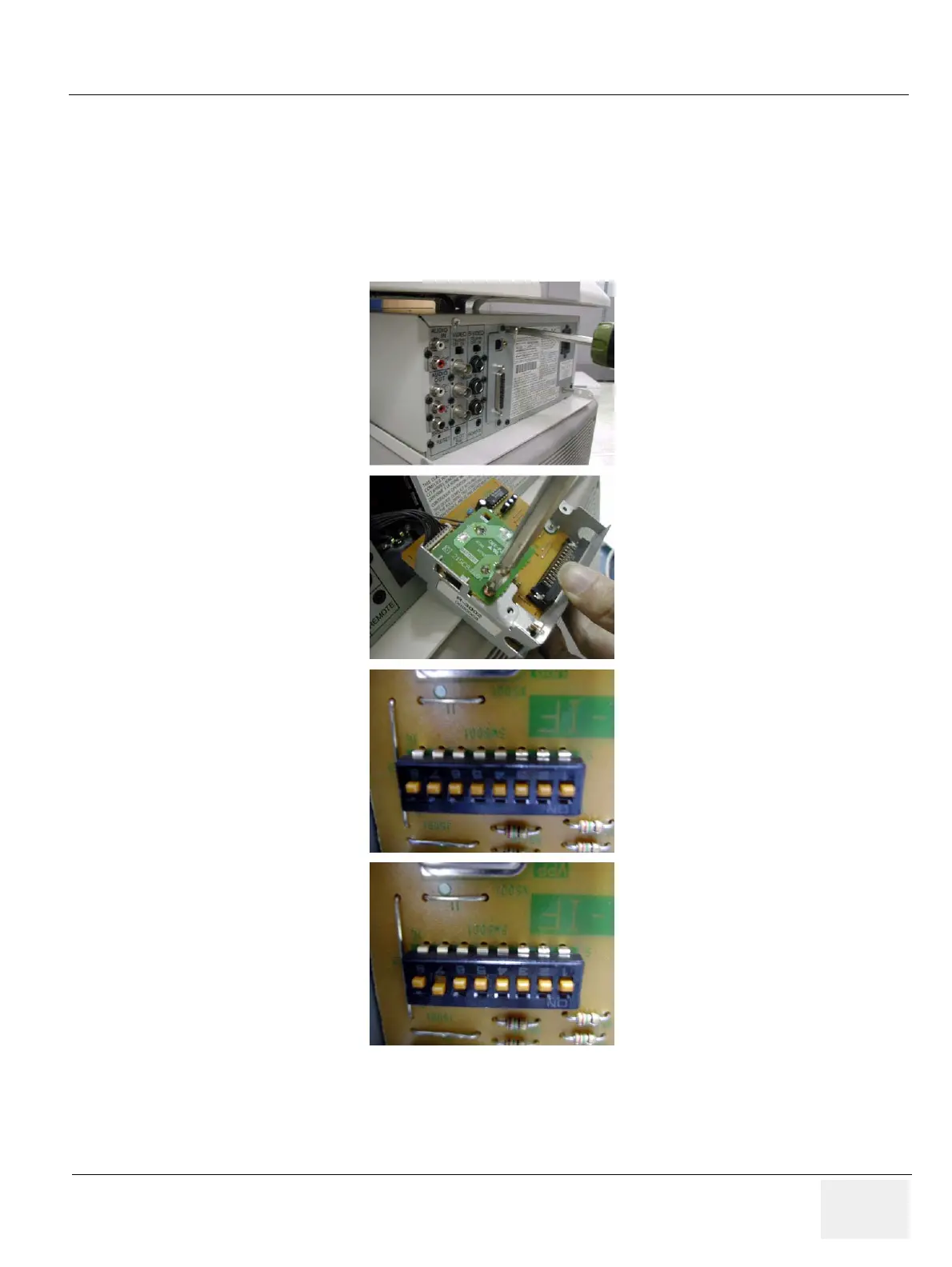

Figure 3-15 Setting VCR USB Interface
