GE LOGIQ P6 Series

GE HEALTHCARE
DIRECTION 5394152, Revision 5
LOGIQ™ P6/P6 PRO SERVICE MANUAL
Chapter 8 - Page 8-91
8-2-42 ARP II Assy 110V/220V
8-2-42-1 Tools
• Common Phillips screwdrivers
8-2-42-2 Preparations
• Shut down the system and switch off the main breaker.
8-2-42-3 Removal procedure
1.) Remove side right cover and EMI cover. Refer to the 8-2-14 "Right or Left Side Cover" on page 8-
48 and 8-2-24 "EMI Cover L and R" on page 8-63.
2.) Remove the Rear Cover. Refer to the 8-2-16 "Rear Cover" on page 8-52.
3.) Unscrew 4 screws (1-4).
4.) Disconnect J15 connector.

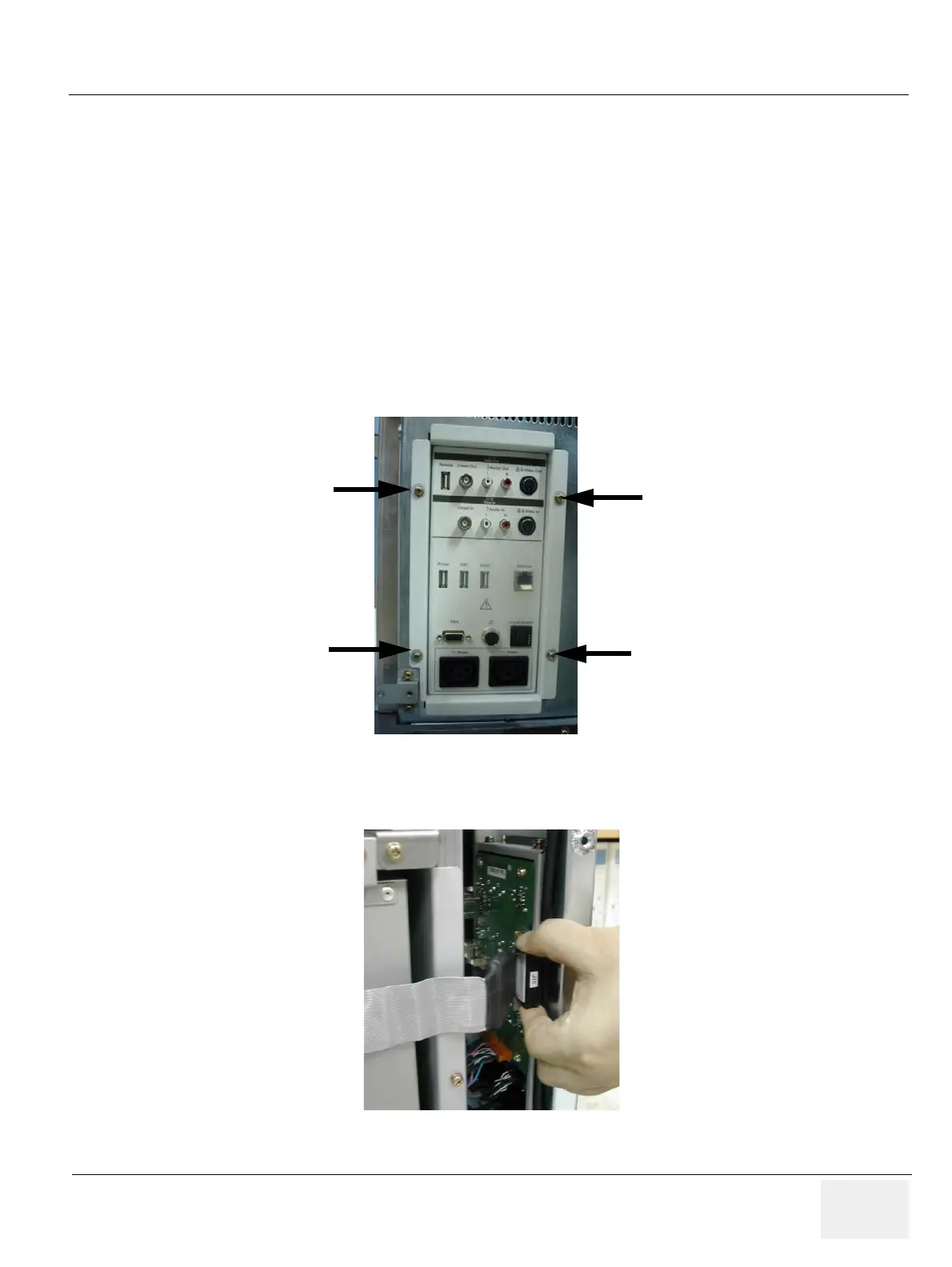

Figure 8-133 Screws of the rear panel
Figure 8-134 AEXP Cable of rear panel
(1)
(3)
(4)
(2)
