GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 8 - Page 8-193

8-7-19 MTZ PROBE HOLDER Installation

1.) This section describes the installation procedure of the MTZ PROBE HOLDER.

2.) Assemble the MTZ PROBE HOLDER FIX BRKT to MTZ HOLDER with 3 screws (2160212, FH

M4X8)

3.) Assemble the Holder to bottom of the Keyboard with 2 screws (2159634, BH M4X10).

4.) Installation completion.

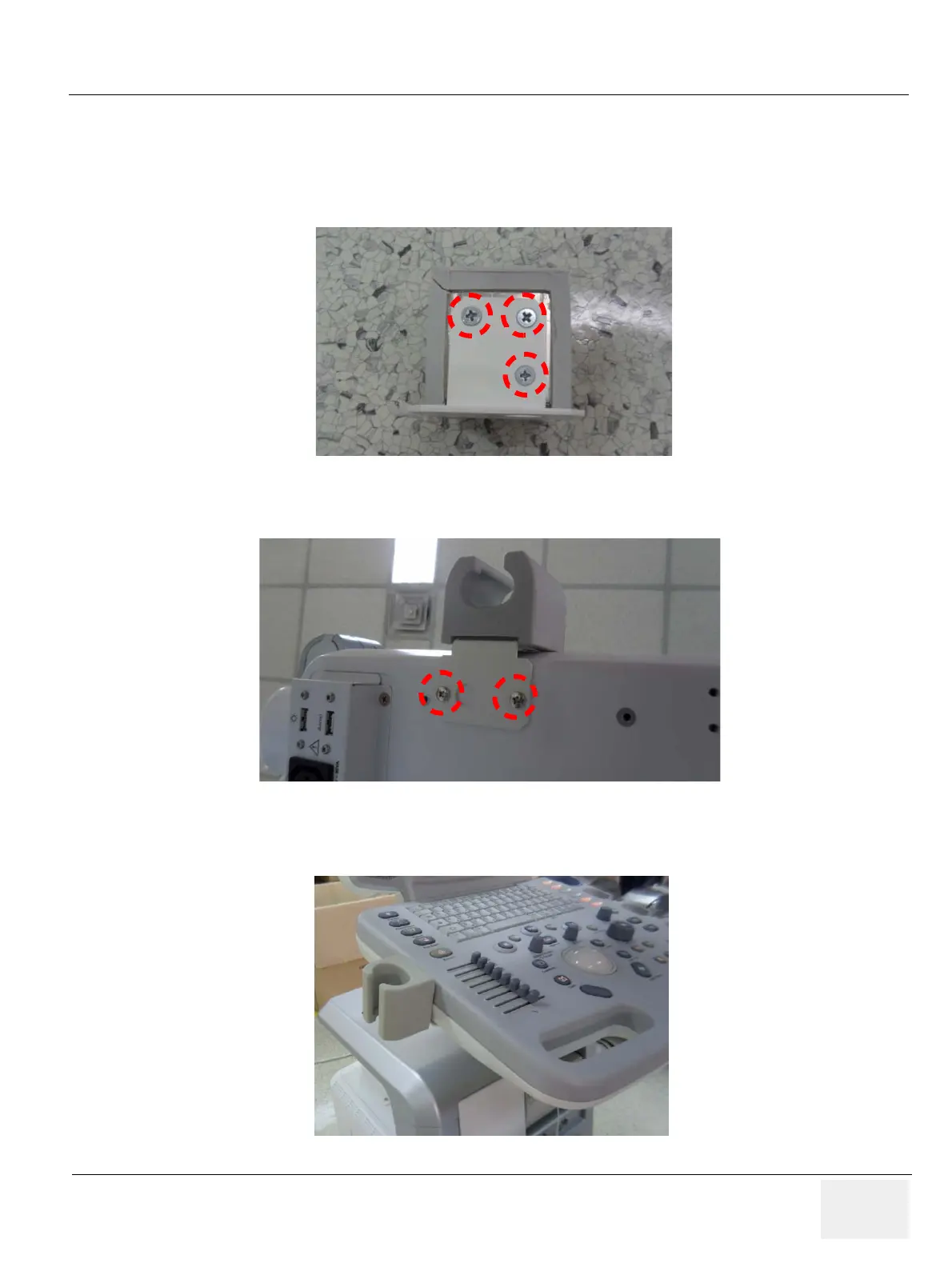

Figure 8-319 MTZ PROBE HOLDER Installation

Figure 8-320 MTZ PROBE HOLDER Installation

Figure 8-321 MTZ PROBE HOLDER Installation
