LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 8-116 Section 8-4 - Software Installation

8-4-2 Verifying Base Image Software

8-4-2-1 Partition Checks

1.) Reboot the SYSTEM and the Desktop screen will be shown as blow.

2.) Click Start button and Run menu, then type explorer and click OK

3.) Right-click My Computer icon on the Desktop and click Manage.

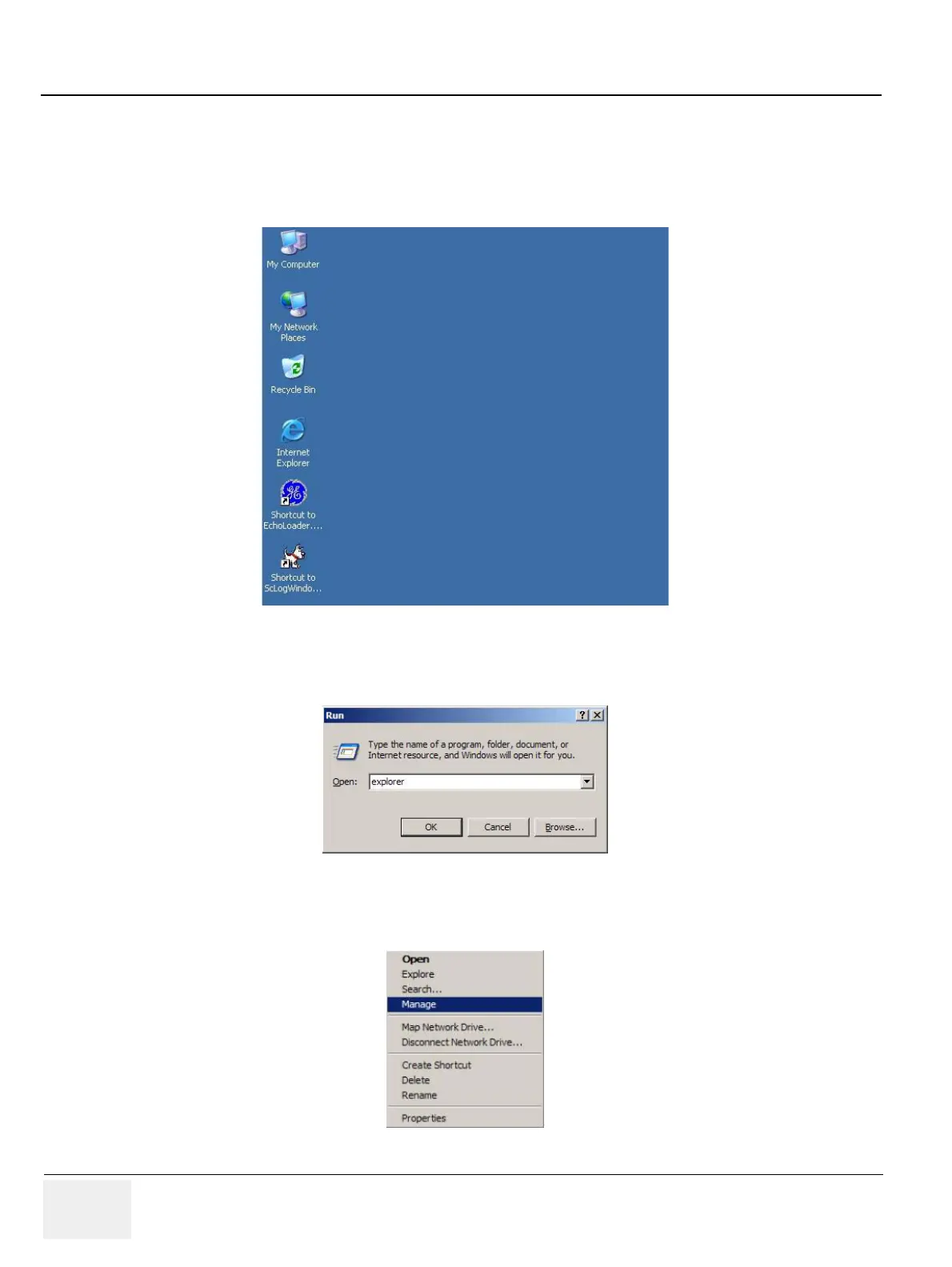

Figure 8-172 Desktop Screen

Figure 8-173 Executing Windows Explorer

Figure 8-174 Opening the Manage Window
