GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 8-74 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY

8-2-30-3 Removal procedure (cont’d)

6.) Mount ASIR ROM to new SYSCONML Assy. Refer to the Figure 8-115.

7.) Confirm mounting direction and pin number.

NOTE: It is important to swap ASIR ROM(U23). Because it contains the serial Number and option the

system.

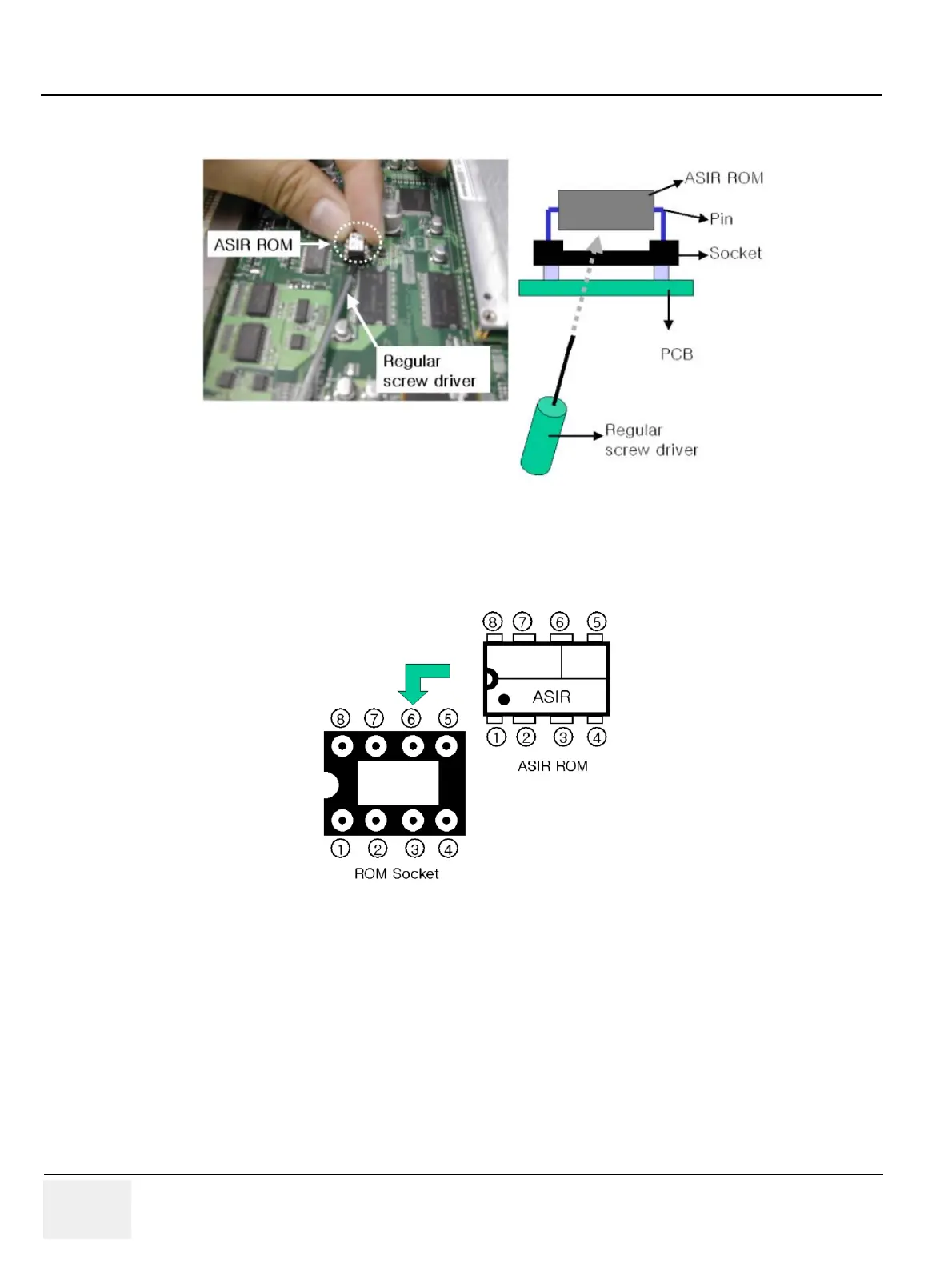

Figure 8-114 Separation of ASIR ROM

Figure 8-115 ASIR ROM mounting direction
