GE LOGIQ P6 Series User Manual

GE HEALTHCARE
DIRECTION 5394152, Revision 5
LOGIQ™ P6/P6 PRO SERVICE MANUAL
Chapter 4 - Page 4-41
4-9-3 Probe Assessment Diagnostic Test Validation Procedure (cont’d)

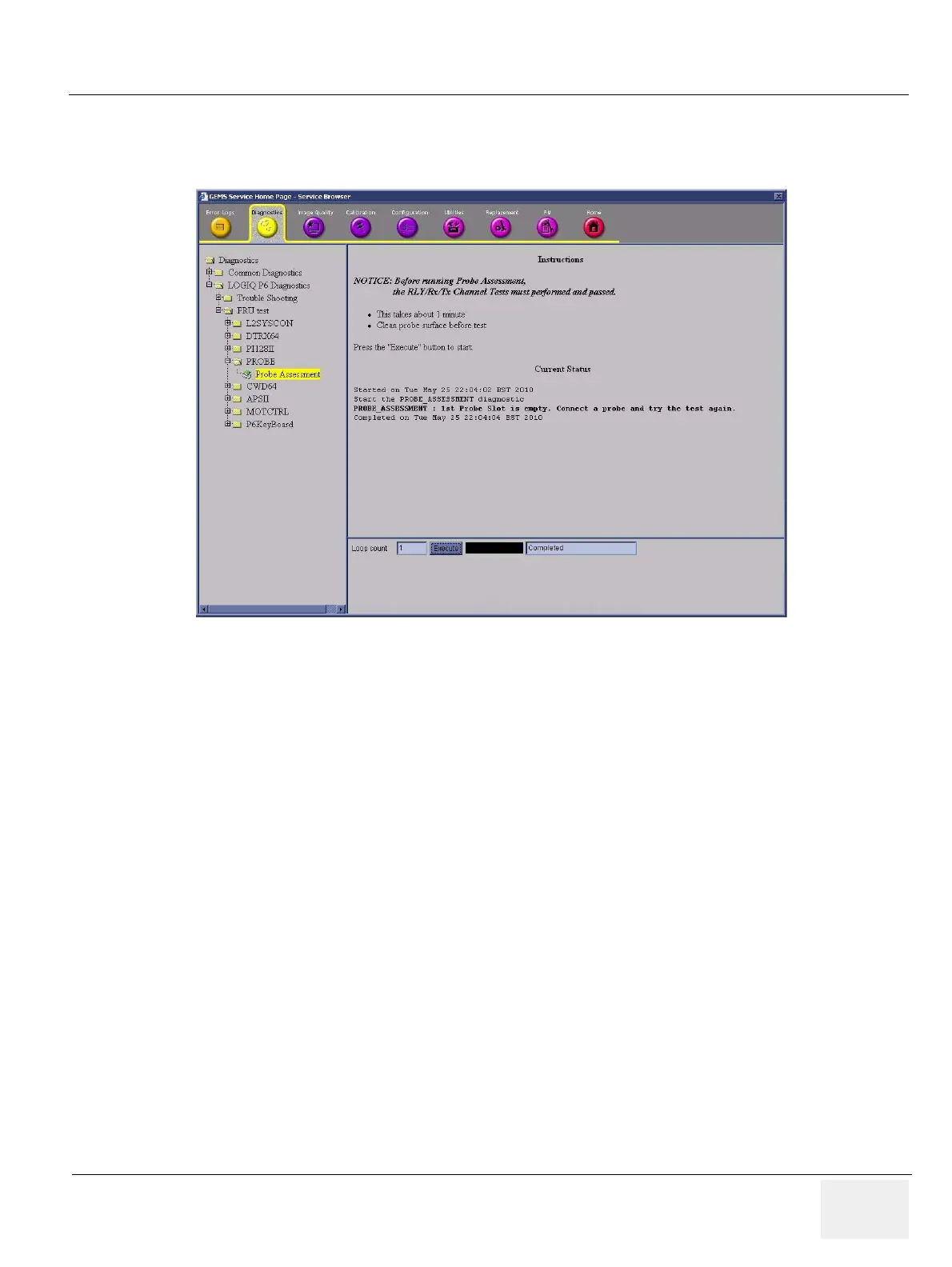

7.) If the test is executed without probe connection, the test shows the following result.
8.) After finishing the test, shut down the system.
Figure 4-38 Probe Assessment Diagnostic Test

GE LOGIQ P6 Series Specifications

General

Power Supply	100-240 VAC, 50/60 Hz
Imaging Modes	B-Mode, M-Mode, Color Doppler, Power Doppler
Applications	Vascular, Musculoskeletal
Operating Temperature	10°C to 40°C
Display	15-inch LCD
Relative Humidity	20% to 80% (non-condensing)
