LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 7-38 Section 7-1 - Overview

7-9-9 Printer Troubleshooting (cont’d)

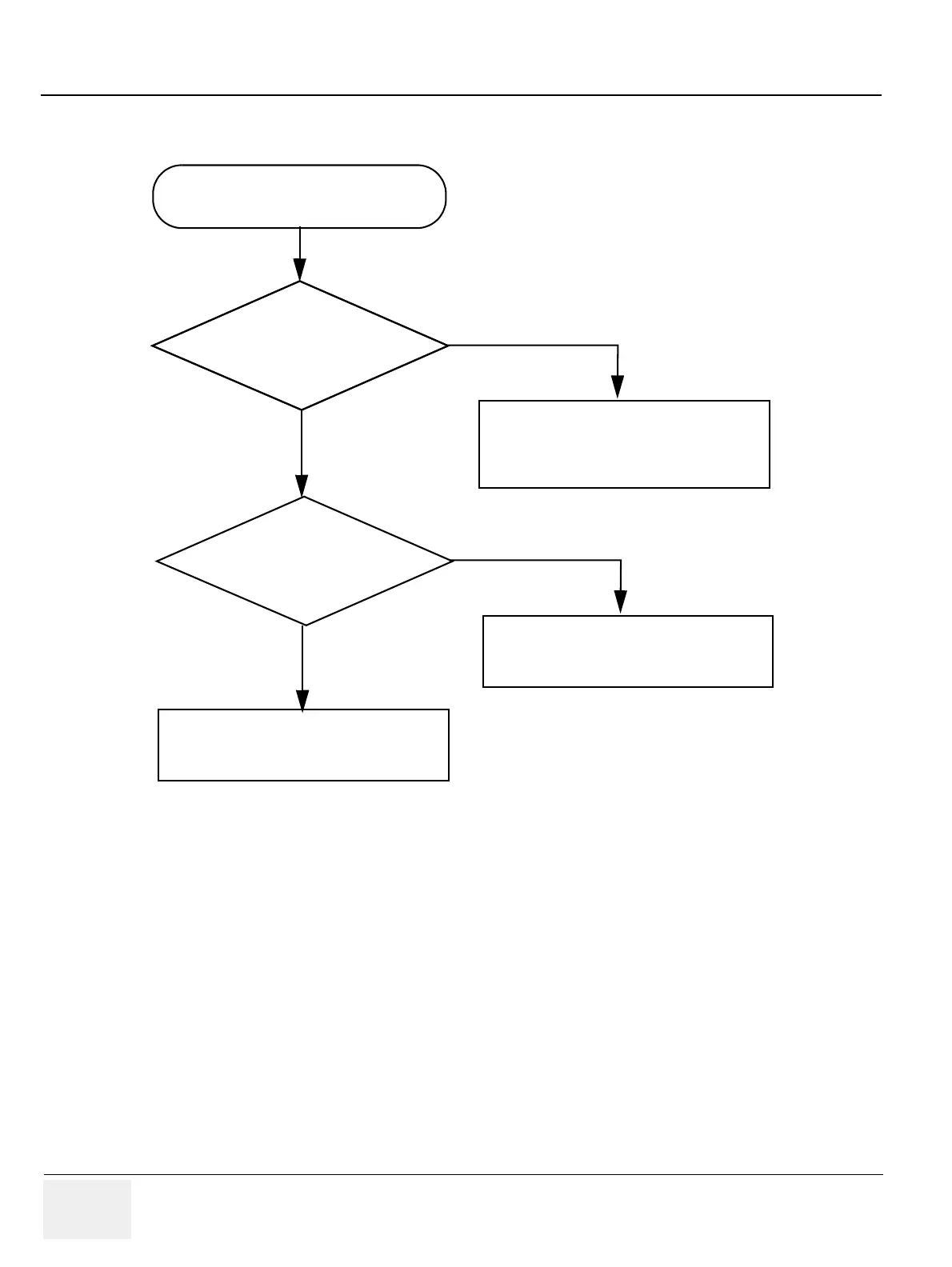

Figure 7-23 Printer Troubleshooting (contd.)

Still unable to use the Printer(s)!

Check the USB cables Between

backplane and usb port.

YES

Is printing unavailable

even by manual

operation?

Is there an error message

on the monitor display?

Replace SOM module.

YES

Replace the Printer.
