LOGIQ™ P6/P6 PRO SERVICE MANUAL
Chapter 8 - Page 8-13
8-2-4-3 Removal procedure (cont’d)
3.) Disconnect power cable and DVI cable.
4.) Unscrew 1 screw (2329677, TAP M4X16) to remove the Fold cover.
5.) Unscrew 2 screws (2159634, BH M4x10 WHT) to remove the Cable clamp.

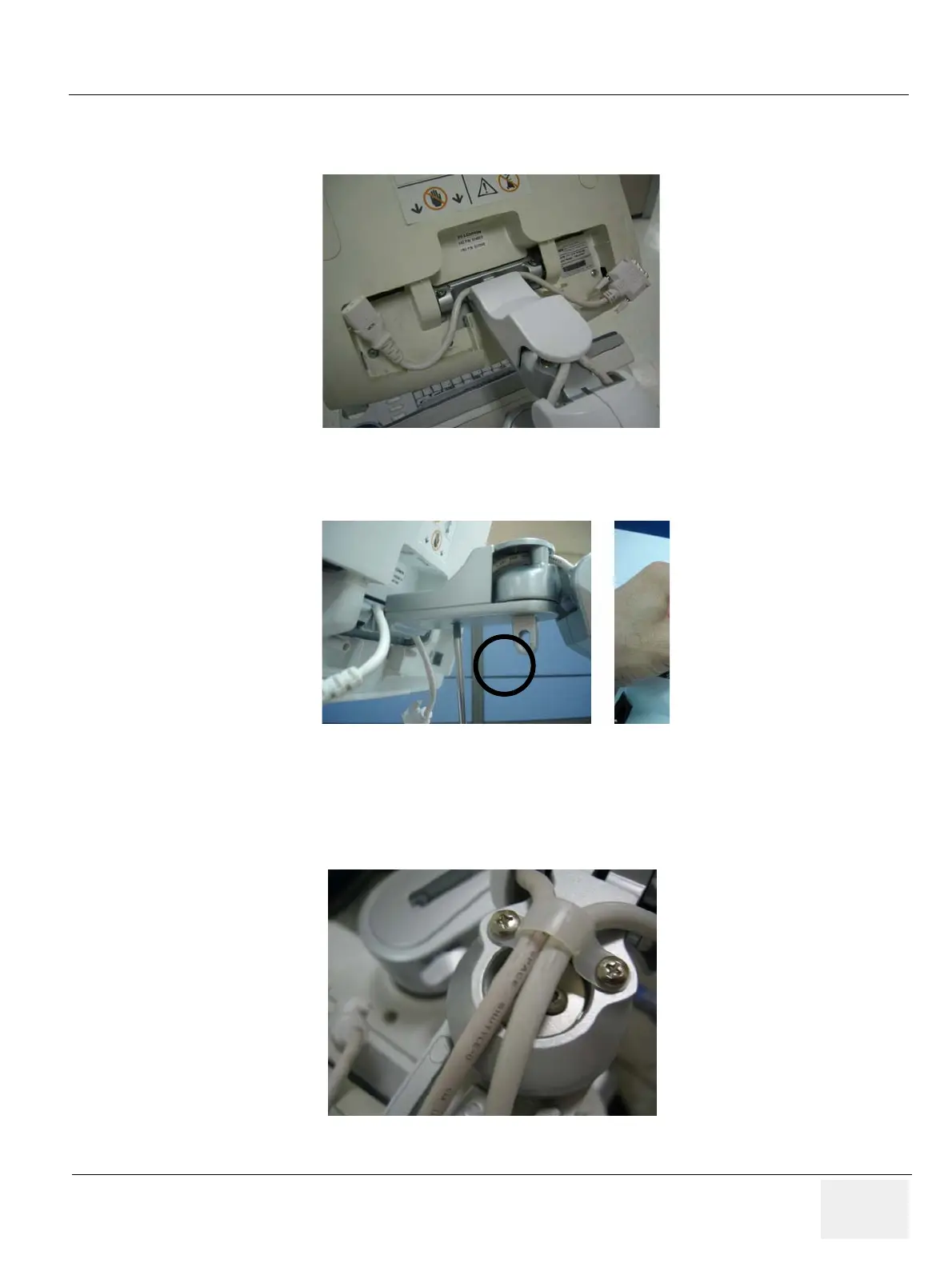

Figure 8-19 Disconnecting power cable and DVI cable
Figure 8-20 Removing the Fold cover
Figure 8-21 Removing the Cable clamp

GE LOGIQ P6 Series Specifications

General

Power Supply	100-240 VAC, 50/60 Hz
Imaging Modes	B-Mode, M-Mode, Color Doppler, Power Doppler
Applications	Vascular, Musculoskeletal
Operating Temperature	10°C to 40°C
Display	15-inch LCD
Relative Humidity	20% to 80% (non-condensing)
