GE HEALTHCARE
DIRECTION 5394152, Revision 5
LOGIQ™ P6/P6 PRO SERVICE MANUAL
Chapter 8 - Page 8-15
8-2-4-3 Removal procedure (cont’d)
9.) Unscrew 4 screws (2159634, BH M4x10 WHT) to remove the Arm bottom cover.
10.)Unscrew 1 screw (2329677, TAP M4X16) to remove the Lock cover.
11.) Unscrew 2 screws (2159625, PH M4x8 W/SP) to remove the Lower arm guide bracket.

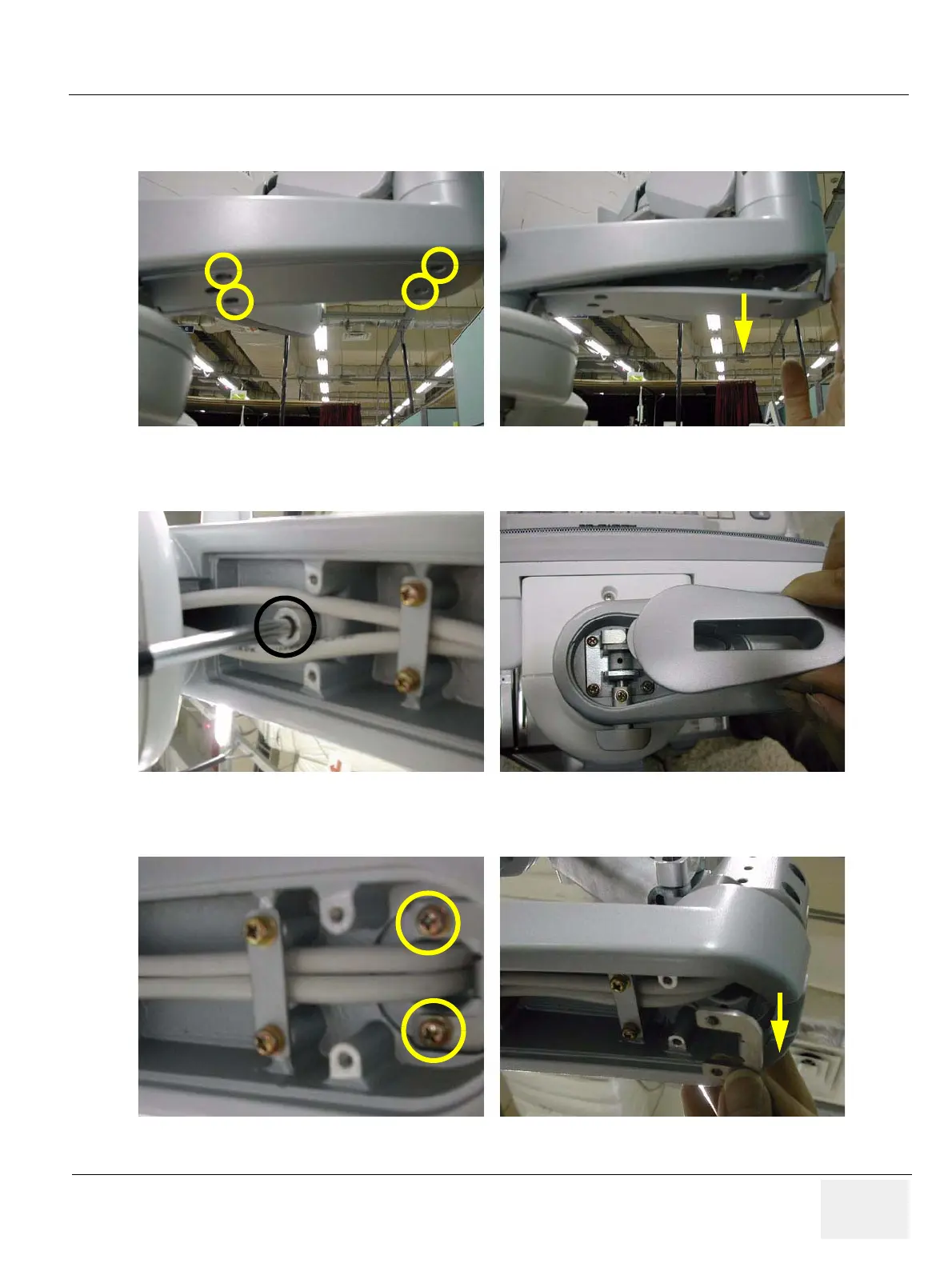

Figure 8-25 Removing the Arm bottom cover
Figure 8-26 Removing the Lock cover
Figure 8-27 Removing the Lower arm guide bracket
