LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 8-28 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY

8-2-4-4 Assembly procedure (cont’d)

19.)Screw 3 screws (2159634, BH M4x10 WHT) after placing the neck front cover and neck Rear cover.

20.)Screw 1 screw (2159625, PH M4X8 W/SP) to assemble the Lock Knob.

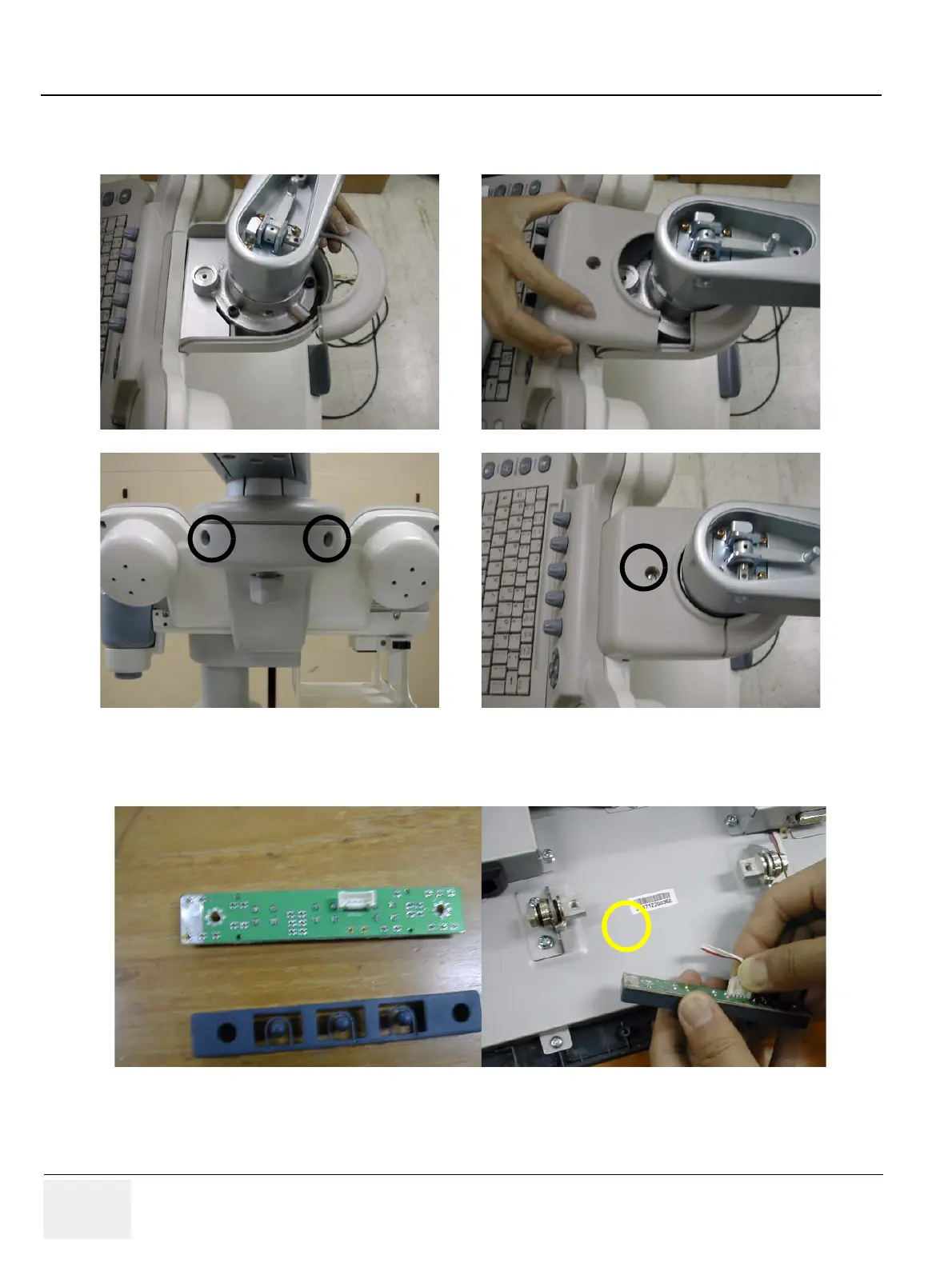

Figure 8-54 Assembling the neck front cover and the neck rear cover

Figure 8-55 Assembling the Lock Knob
